Precision flow-control devices known as spherical butterfly valves are frequently employed in industrial systems that demand tight sealing, minimal torque, and dependable operation. These valves are supplied by Ahmedabad manufacturers to international companies that require accuracy, longevity, and economical operation.

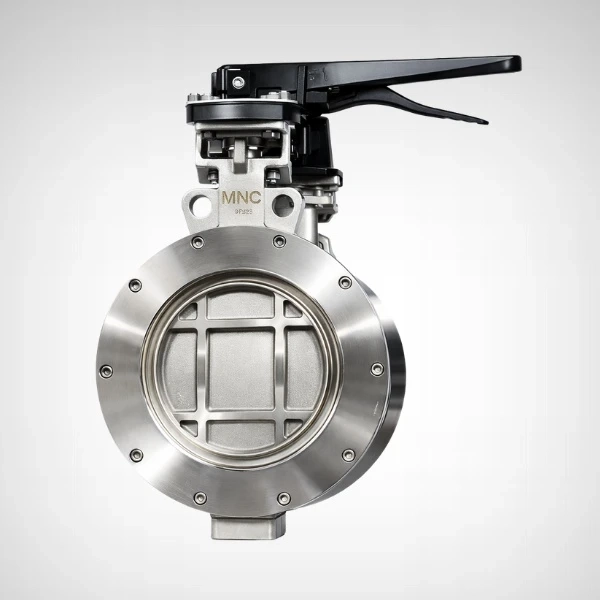

What is a Spherical Butterfly Valve

A quarter-turn rotary valve intended for accurate fluid control is called a spherical butterfly valve. Instead of using a flat disk, it employs one with a spherical profile. During operation, this design lowers friction and enhances sealing.

Working Principle

• The valve disc rotates 90 degrees to open or close flow.
• In open position, fluid passes with minimal resistance.
• In closed position, the disc presses against the seat to create a tight seal.
• The spherical contour ensures uniform contact pressure across the seat.

This design allows better flow characteristics and longer sealing life compared to conventional butterfly valves.

Key Features

• High Performance Sealing – Spherical disc geometry ensures uniform seat compression.
• Low Torque Operation – Reduced friction lowers actuator load.
• Corrosion Resistance – Available in stainless steel, duplex, or coated materials.
• Durable Construction – Designed for high-cycle industrial usage.
• Efficient Flow Control – Provides precise throttling capability.
• Compact Design – Lightweight body reduces pipeline stress.

Industrial Applications

Spherical butterfly valves serve demanding industrial processes where reliability is critical.

Chemical Industry
Handles aggressive media, acids, and solvents with corrosion-resistant materials.

Oil and Gas
Used in pipeline isolation, offshore systems, and refining operations requiring tight shut-off.

Power Plants
Controls steam, cooling water, and condensate systems.

Water Treatment
Regulates flow in filtration, distribution, and wastewater processing.

Pharmaceutical & Food Processing
Ensures hygienic flow control with sanitary finishes and precision sealing.

Marine Systems
Performs reliably in saltwater environments and confined spaces.

Mining Operations
Handles slurry and abrasive fluids with reinforced disc and seat design.

HVAC Systems
Used in chilled water, hot water, and air handling networks.

Advantages

Spherical butterfly valves offer several engineering advantages over traditional valve types:

Compared to Gate Valves

• Faster actuation.
• Smaller installation space.
• Lower weight.

Compared to Globe Valves

• Lower pressure drop.
• Reduced energy consumption.
• Simpler construction.

Compared to Ball Valves

• More economical for large diameters.
• Better throttling control.
• Lower torque requirement.

These benefits make them a preferred choice in modern industrial piping systems.

Why Ahmedabad is a Manufacturing Hub

Ahmedabad has developed into a major valve manufacturing center due to its strong engineering ecosystem.

• Established heavy engineering industries.
• Skilled technical workforce.
• Access to casting, machining, and testing facilities.
• Competitive production costs.
• Efficient logistics connectivity.

This environment enables manufacturers to produce high-quality industrial valves at global standards while maintaining cost efficiency.

Why Choose MNC Valves

MNC Valves is recognized among industrial buyers for consistent manufacturing standards and dependable delivery.

Manufacturing Capability
Modern machining, testing, and assembly infrastructure ensures dimensional accuracy and performance reliability.

Quality Control
Each valve undergoes pressure testing, leak testing, and material verification.

Customization
Options include special alloys, actuator mounting, pressure classes, and seat materials.

Delivery Reliability
Streamlined production planning supports bulk orders and tight project timelines.

Buying Guide

Selecting the correct spherical butterfly valve requires evaluating several technical factors:

Pressure Rating
Ensure the valve class matches system operating pressure and surge conditions.

Fluid Type
Corrosive, abrasive, or sanitary media require specific materials and seat designs.

Temperature Range
High temperatures demand metal seats; moderate ranges allow elastomer seats.

Automation Needs
Consider pneumatic, electric, or hydraulic actuators for remote operation.

Pipe Size and Standards
Confirm flange compatibility and dimensional standards such as ANSI or DIN.

FAQ Section

1. How do I select the correct valve size?
Choose a valve equal to pipeline diameter unless flow coefficient calculations indicate otherwise.

2. Can spherical butterfly valves handle throttling applications?
Yes. Their disc geometry allows accurate flow modulation.

3. What pressure classes are available?
Common ratings range from PN10 to PN40 and ANSI Class 150 to 600.

4. Which material is best for corrosive fluids?
Stainless steel, duplex steel, or PTFE-lined options are recommended.

Conclusion

Spherical butterfly valves combine efficient flow control, compact design, and long service life. Manufacturers in Ahmedabad deliver technically advanced solutions for diverse industries. For engineered reliability, performance consistency, and project-ready supply, professional buyers can confidently evaluate trusted suppliers such as MNC Valves for their operational requirements.
