DUWELL upright production line is one complete automatic production line, to make the punching hole, profile forming, cutting and stacking in one line with automatic working. For different sizes profile, it can adjust the different sizes automatically in the machine. With auto stacking system, it only need two people to work the whole line.
INTRODUCTION of Storage Upright Rack Roll Forming Machine

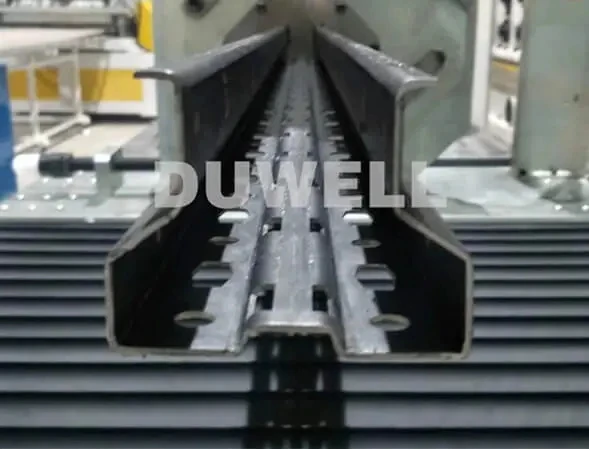

The Warehouse Storage Upright rack roll forming machine is a high-precision, automated machine designed for the efficient production of upright frames used in warehouse storage systems, pallet racking, and shelving structures. This machine utilizes advanced roll forming technology to shape metal coils into strong, uniform upright profiles with precise dimensions, ensuring durability and load-bearing capacity.
COMPONENTS of Storage Upright forming machine
Uncoiler: Loading the steel coil
Leveler: leveling the sheet
Servo feeder: feed the sheet into pressing machine
Pressing machine: Press the holes on the upright before forming.
Profiling Roll Forming Machine: For precise profile forming.
Adjusting device: For final slats straight adjusting.
Servo following hydraulic cutting device: For precise cuts.
Stacking Table: Stacking the finished upright.
TECHNICIAN DETAILS of Storage Upright Rack Roll Forming Machine
Working process
5 ton decoiler —→ leveling device—→ Feeding device (servo motor) —→Pressing machine—→Roll-forming Machine —→ Hydraulic cutting—→ Run out table
Roll forming machine
Suitable plate of the rolling: galvanized steel or cold/hot roll steel, with thickness 2.0~2.5mm,
Working speed: Approx. 6~8meter/min (with cutting and punching time)
Forming stations: 16 stations
Roller material: Cr12Mov (Cr12) with quenching and chrome plating on surface, hardness: HRC58-62
Material of principal axis: #45 advanced steel, (Dia: 65mm)
Main machine power: 22 KW
Driven: gear box transmission
Cut-off system: Hydraulic cutting, power:7.5KW, with three cutting knives.
Control system: The whole machine is controlled by PLC system, brand: Delta
If you are looking for a reliable roll forming machine company, please contact us.
