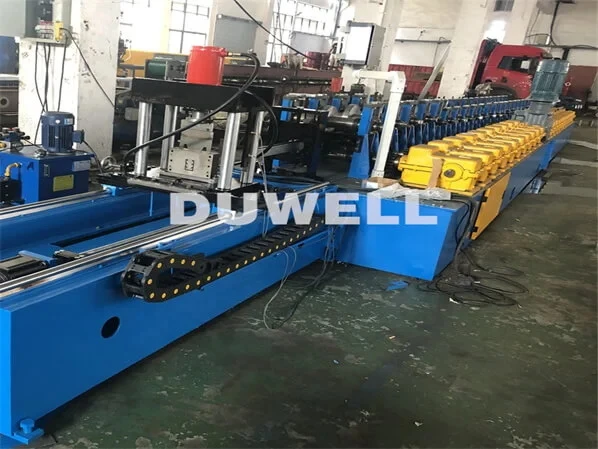

Strut Channel Roll Forming Machine

The strut channel machine is a specialized piece of equipment designed to produce high-quality c channel forming machine (also known as solar mounting rails or solar strut profiles) used in solar panel mounting systems. These struts provide structural support for solar panels, ensuring stability and durability in various environmental conditions.

Our machine is engineered for precision, efficiency, and long-term reliability, making it ideal for manufacturers looking to produce solar struts in large quantities with consistent quality.

APPLICATION of unistrut roll forming machine

The Solar strut channel roll forming machine is a specialized piece of equipment designed to produce high-quality solar strut channels (also known as solar mounting rails or solar strut profiles) used in solar panel mounting systems. These struts provide structural support for solar panels, ensuring stability and durability in various environmental conditions.

Our machine is engineered for precision, efficiency, and long-term reliability, making it ideal for manufacturers looking to produce solar struts in large quantities with consistent quality.

KEY FEATURES

✔ High-Speed Production – Capable of forming solar strut profiles at speeds of up to 15-25 meters per minute (adjustable based on material thickness).

✔ Multi-Station Roll Forming – Equipped with 12-20 forming stands to ensure precise shaping and dimensional accuracy.

✔ Material Compatibility – Works with galvanized steel, aluminum, or stainless steel coils (common thickness: 1.0mm–3.0mm).

✔ Automatic Cutting System – Hydraulic or servo cutting for clean, burr-free cuts with high precision (±0.5mm tolerance).

✔ PLC Control System – User-friendly interface for easy operation, length adjustment, and production monitoring.

✔ Punching & Notching Options – Can integrate punching units for holes or slots required for solar mounting systems.

✔ Robust Construction – Heavy-duty frame andhigh-quality rollers for extended service life.

COMPONENTS of Strut Channel Roll Forming Machine

Uncoiler: Loading the steel coil

Leveling : Leveling the sheet flat before entering pressing machine

Servo feeder and pressing machine: Punch the holes on the sheet before forming.

Hydraulic cutting: Cut off the sheet before forming.

Profiling Roll Forming Machine: For precise profile forming.

Adjusting device: For final straight adjusting.

Stacking Table: Stacking the finished products.

TECHNICIAN DETAILS of Solar Strut Roll Forming Machine

Working process

5 ton decoiler —→ leveler—→servo feeder—→Pressing machine—→Guiding and hydraulic cutting —→ Roll-forming Machine —→Adjusting —→Run out table

Machine parameters

Suitable plate of the rolling: steel , with thickness 2.0~3.0mm,

Working speed: 8~12 meters/min

Forming stations: 18~24 stations

Roller material: GCr15 with quenching and chrome plating on surface, hardness: HRC58-62

Material of principal axis: #45 advanced steel

Main machine power: 18.5 KW

Control system: The whole machine is controlled by PLC system
