In heavy industries such as cement, mining, steel, power plants, and bulk material handling, conveyor systems are used to move materials continuously. These systems require a strong and efficient power transmission unit to operate smoothly. One of the most commonly used solutions is the shaft mounted gearbox.

This guide explains what a shaft mounted gearbox is, how it works, its types, benefits, and how it connects with other important conveyor components like pulleys, bearings, and types of conveyor magnets.

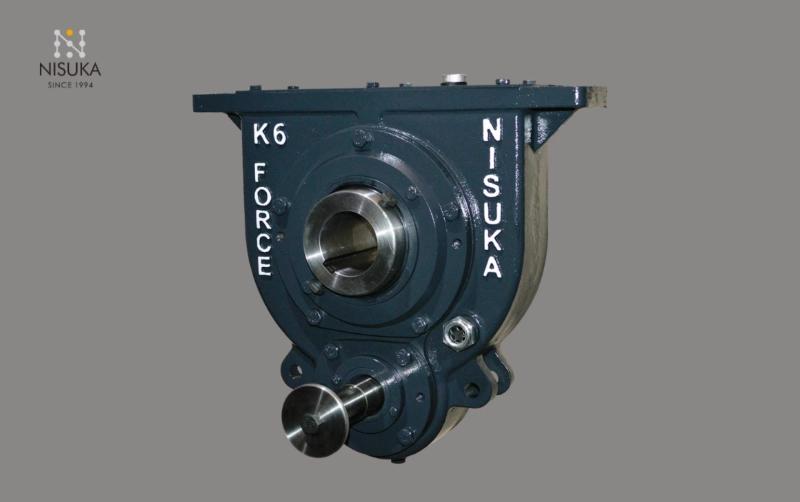

What Is a Shaft Mounted Gearbox?

A shaft mounted gearbox is a compact speed reducer that is installed directly onto the driven shaft of a machine, usually a conveyor head shaft. Unlike traditional gearboxes that require a base frame and precise alignment, this gearbox mounts directly on the shaft, making installation easier and saving space.

Its main functions are:

• Reducing motor speed
• Increasing torque
• Providing stable and efficient power transmission

Many industries prefer sourcing from a reliable shaft-mounted gearbox manufacturer in Ahmedabad to ensure durability and performance in demanding industrial environments.

How Does a Shaft Mounted Gearbox Work?

The working principle is simple and effective.

1. An electric motor generates rotational power.
2. The motor transfers this power to the gearbox using a belt drive or coupling.
3. Inside the gearbox, gears reduce the input speed.
4. As speed decreases, torque increases.
5. The output power is directly delivered to the conveyor shaft.

Because the gearbox is mounted directly on the shaft, alignment issues are reduced and efficiency improves.

Key Components of a Shaft Mounted Gearbox

A shaft mounted gearbox includes:

• Input shaft
• Hardened gear set
• Hollow output bore
• Torque arm
• Bearings and seals

Strong bearing support is very important. Many industries rely on a trusted UCP Pillow Block Manufacturer in Ahmedabad to provide durable bearing units that support conveyor shafts and improve system reliability.

Types of Shaft Mounted Gearboxes

There are different types Shaft Mounted Gearbox available for various industrial needs:

1. Helical Shaft Mounted Gearbox

Offers smooth operation and high efficiency.

2. SMSR Gearbox (Shaft Mounted Speed Reducer)

Widely used in conveyor systems for heavy-duty applications. Industries often choose a dependable SMSR Gearbox manufacturer in Ahmedabad for reliable performance.

3. Worm Shaft Mounted Gearbox

Used when high reduction ratios are required.

Among these, SMSR gearboxes are most popular in bulk material handling systems.

Why Shaft Mounted Gearboxes Are Ideal for Conveyors

Conveyor systems require compact, powerful, and easy-to-maintain drive units. A shaft mounted gearbox offers:

• Simple installation
• Compact design
• Reduced alignment problems
• High torque output
• Lower maintenance costs

It is usually mounted directly onto the conveyor drum pulley shaft. Many companies work with a trusted conveyor drum pulley manufacturer in Ahmedabad to ensure proper compatibility between pulley and gearbox systems.

Importance of Conveyor Magnets in System Protection

In industrial environments, materials may contain unwanted metal pieces. These iron particles can damage gears, bearings, and shafts if not removed.

A Conveyor Magnet helps protect the gearbox and other components by removing ferrous materials before they enter the drive system. Many industries depend on a reliable Suspension Magnet supplier in Tamil Nadu for strong and efficient magnetic separation solutions.

Types of Conveyor Magnets

Different types of conveyor magnets are used to protect conveyor systems:

1. Suspension Magnet

Installed above the conveyor belt to attract iron particles.

2. Overband Magnet

Mounted across the belt, often available in self-cleaning models.

3. Magnetic Drum Separator

Placed at the discharge end for continuous separation.

4. Magnetic Pulley

Replaces the standard pulley to remove iron at the discharge point.

Using these types of conveyor magnets increases the lifespan of shaft mounted gearboxes and other conveyor components.

Applications of Shaft Mounted Gearbox

Shaft mounted gearboxes are commonly used in:

• Belt conveyor systems
• Cement plants
• Mining industries
• Coal handling plants
• Steel manufacturing units
• Power generation stations
• Bulk material handling operations

Their strong design makes them suitable for continuous and heavy-duty operations.

Maintenance Tips for Long Service Life

To maintain performance:

• Check lubrication regularly
• Monitor oil levels
• Inspect bearings and seals
• Ensure proper torque arm alignment
• Listen for unusual sounds

Using quality components from trusted manufacturers ensures long-term efficiency and safety.

Conclusion

A shaft mounted gearbox is a compact and reliable speed reduction solution widely used in industrial conveyor systems. It reduces motor speed, increases torque, and delivers smooth power transmission.

When combined with products from a SMSR Gearbox manufacturer in Ahmedabad, a conveyor drum pulley manufacturer in Ahmedabad, and a UCP Pillow Block Manufacturer in Ahmedabad, along with protective systems from a Suspension Magnet supplier in Tamil Nadu, the conveyor system becomes stronger and more efficient.

For industries aiming to improve productivity and reduce downtime, investing in a high-quality shaft mounted gearbox is a practical and smart decision.
