High Frequency VCXO

The high frequency crystal oscillator (Voltage-Controlled Crystal Oscillator) is a critical component in advanced communication, RF, and microwave systems, offering precise frequency tuning, high stability, and low phase noise. These oscillators are designed to meet the demanding requirements of modern signal processing and communication technologies. Below is a detailed overview of their features, applications, and benefits:

Key Features of High Frequency VCXO

Precise Frequency Tuning

VCXOs allow fine frequency adjustments via an external control voltage, making them ideal for applications requiring dynamic frequency control, such as phase-locked loops (PLLs) and frequency synthesis.

High Frequency Stability

These oscillators maintain exceptional frequency stability, ensuring reliable performance in critical applications.

Low Phase Noise

High Frequency vctcxo oscillator exhibit low phase noise, reducing jitter and enhancing signal integrity, which is essential for high-performance RF and microwave systems.

Compact SMD Package

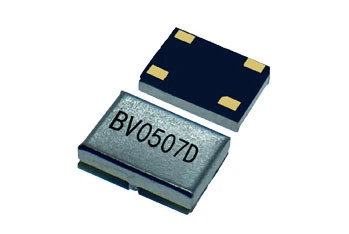

The BV0507D series features a surface-mount package measuring 7.0 x 5.0mm, enabling easy integration into compact designs.

Wide Frequency Pulling Range

Frequency pulling ranges of ±25ppm, ±50ppm, and ±100ppm provide flexibility for various applications.

Multiple Output Waveforms

Supports CMOS, LVDS, HCSL, and LVPECL output waveforms, catering to diverse system requirements.

Ultra-Low Jitter

With jitter as low as 50fs, these 50 mhz vcxo ensure clean and stable signals, critical for high-speed data transmission and signal processing.

Quick Warm-Up

Designed for fast stabilization, ensuring minimal delay in achieving optimal performance after power-up.

Applications of High Frequency VCXO

High Frequency VCXOs are indispensable in systems requiring precise frequency control, low phase noise, and high stability. Key applications include:

1. RF Communication Systems

Carrier Frequency Generation:

VCXOs generate stable carrier frequencies, ensuring reliable signal transmission and reception in RF systems.

Phase-Locked Loops (PLLs):

Integral to PLLs for frequency synthesis and modulation in RF transmitters and receivers.

2. Microwave Systems

Radar Systems:

Provide precise frequency control for accurate signal processing in radar applications.

Satellite Communication:

Ensure stable and reliable frequency generation for satellite uplink and downlink communication.

3. Test and Measurement Equipment

Reference Signals:

Deliver stable reference signals for accurate testing and calibration of RF components.

Precision Instruments:

Enhance the performance of oscilloscopes, spectrum analyzers, and other test equipment.

4. Aerospace and Defense

Mission-Critical Systems:

Used in aerospace and defense applications where performance, reliability, and frequency stability are paramount.

Electronic Warfare:

Support high-frequency signal processing in advanced defense systems.

5. Telecommunications

Base Stations and Networking Equipment:

Provide stable clock signals for 5G base stations, optical transmission systems, and high-speed networking equipment.

Frequency Synthesis:

Enable precise frequency generation for advanced telecommunication systems.

6. Signal Processing

Data Integrity:

Low phase noise and jitter improve the performance of high-frequency circuits, ensuring accurate signal processing and data integrity.

Why Choose High Frequency VCXO?

Precision and Stability:

High Frequency VCXOs offer precise frequency control and exceptional stability, making them ideal for critical applications.

Low Phase Noise and Jitter:

Their low phase noise and ultra-low jitter ensure clean and reliable signals, enhancing overall system performance.

Compact and Versatile Design:

The small SMD package and multiple output waveform options make them suitable for a wide range of applications.

Wide Pulling Range:

The ability to adjust frequency over a wide range provides flexibility for dynamic system requirements.

Reliability in Harsh Environments:

Designed to maintain performance under varying environmental conditions, making them suitable for aerospace, defense, and industrial applications.

Conclusion

High Frequency VCXOs, such as the BV0507D, are essential components in advanced RF, microwave, and communication systems. Their precise frequency tuning, low phase noise, and high stability make them ideal for applications requiring reliable and accurate signal generation. Whether in telecommunications, aerospace, defense, or test and measurement, High Frequency VCXOs deliver the performance and reliability needed for next-generation technologies.

As a professional oscillator manufacturers, xtaltq trys our best to provide good products and service for you.

For more information about TCXO oscillator, please feel free to contact us!
