Connecting aluminum cables to copper busbars is a very challenging task in the field of electrical engineering. If direct connections are made, they will result in galvanic corrosion, which will lead to resistance and, also, the possibility of potentially dangerous overheating. Fortunately, one of the ways to avoid this problem is to use Bi Metallic cable lugs.

However, simply having the right part isn't enough; the installation technique is equally important as the component itself. Wrong crimping is one of the most common reasons for power distribution electrical failure. This article delves into the proper installation of these essential components so that a safe and durable connection can be made.

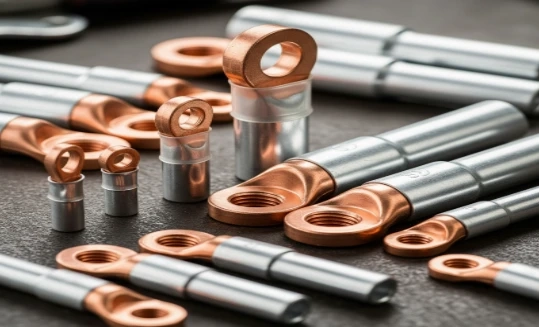

What Are Bi Metal Cable Lugs?

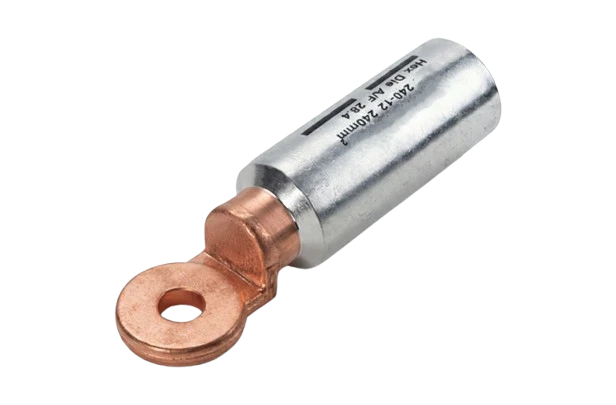

Bi-metal cable lugs, which are referred to as Bi-metallic terminals too, are engineered connectors designed to transition between dissimilar metals.The common structure of these connectors consists of a barrel made of aluminum (where the aluminum cable is inserted) and a palm made of copper (to bolt onto the copper busbar).

To connect the two metals, a specially designed method of welding known as friction welding is applied, and thus, a seamless molecular bond is created. This particular design allows the aluminum and copper to be isolated from each other and thus, the system's electrical integrity is guaranteed.

Step-by-Step Guide: Crimping Bi Metal Lugs Connectors

To achieve a perfect termination, follow this standardized procedure.

1. Selection and Sizing

As a first step, always check the Bi metal lugs sizes that are compatible with your cable before you cut any wire. The internal diameter of the aluminum barrel must be equal to the conductor's cross-sectional area. If you use a lug that is too large, the crimp will be weak, and if the lug is too small, the strands may get damaged.

2. Cable Preparation

Remove the insulation covering of the aluminum cable. The unsealed conductor length should be the same as the lug's barrel length plus 5 mm. Do take care not to nick the aluminum strands as these can become points of stress.

• Tip: If the cable is oxidized, wire brush the conductor strands to expose bright metal before insertion.

3. Application of Joint Compound

In most cases, high-quality Bi metal terminal lugs are already filled with joint compound and subsequently capped. If this is not the case with yours, then contact grease should be applied to the conductor. This prevents immediate re-oxidation of the aluminum.

4. Insertion

The aluminum conductor should be completely pushed into the lug barrel. Check that the insulation is touching the end of the barrel, but don’t crimp the insulation itself.

5. The Crimping Process

Using a hydraulic crimping tool with the correct die size, begin the crimping process.

• Sequence: Always start crimping from the palm end (the copper side) and work your way toward the cable entry.
• Spacing: Ensure adequate spacing between bites if multiple crimps are required.
• Orientation: Rotate the crimper slightly if necessary to prevent bending the lug (banana effect), though modern tools often mitigate this.

6. Inspection

After crimping, get rid of the excess compound that has been squeezed out. Check the Bi metallic lugs connectors visually to make sure there are no cracks and that the lug is securely attached.

Once this last check is done, the bi-metallic termination can be considered safe and ready for use.
