In RF and microwave technology, the selection of connectors is a matter of fundamental importance in providing performance, reliability, and signal integrity. With industries like telecommunications, aerospace, and defense requiring higher frequencies and smaller form factors, specialty connectors such as the edge mount PCB connector and the bulkhead connector have become fundamental building blocks in contemporary electronic systems.
The Role of Edge Mount PCB Connectors

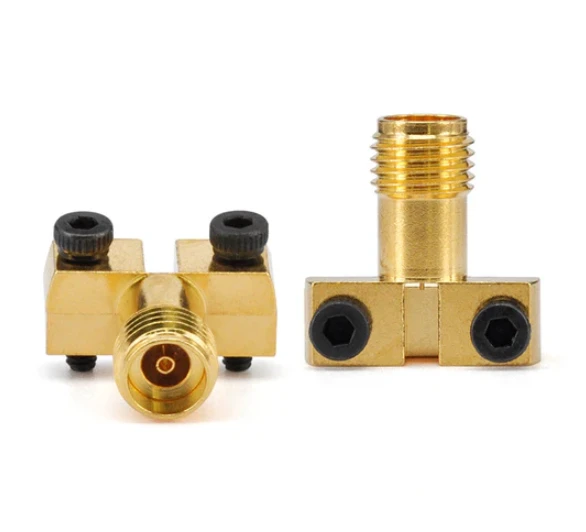

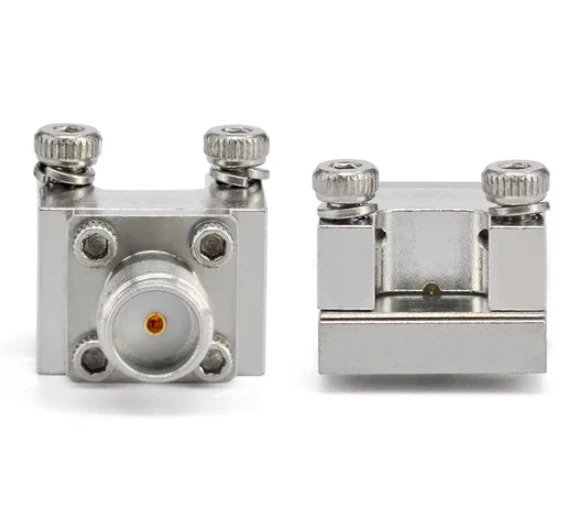

An edge-mount PCB connector is meant to offer a safe connection straight to the edge of a printed circuit board. This setup is very efficient in that it reduces the footprint area on the PCB, and it is therefore a great option where board space is limited.
These PCB connectors are edge-mount, which makes them very precise and stable to use in high-frequency circuits. Edge-mount PCB connectors reduce insertion loss and enable signal propagation with constant impedance, which is important to reduce unwarranted signal degradation. Their small size and the ability to use microwaves and RF make them popular in those industries where performance is not compromised.
The Versatility of Bulkhead Connectors
While edge mount connectors are superior at conserving PCB space, the bulkhead connector offers another benefit: installation flexibility. The connectors are mounted through a panel or enclosure and allow for a secure and stable pass-through connection. Bulkhead connectors are especially useful in applications where signals must be passed through housings or protective coverings without sacrificing shielding or structural integrity.
They are extensively applied in applications that need durability and resistance to the influences of the external environment, like vibration, moisture, and dust. From aerospace equipment to laboratory test equipment, bulkhead connectors provide secure connections while not compromising on the mechanical integrity of the enclosure.
Comparing the Two Connectors
Although both connectors are crucial to the body, they are used differently. Edge-mount PCB connectors fit best into space-constrained designs that require a clean and simple mount to a circuit board. Bulkhead connectors, conversely, are applicable in those applications that require rugged and flexible mounting solutions, which are normally in harsh or outdoor applications.
When combined in intricate systems, these connectors can be mutually supportive, providing designers with both small size and strength.
Conclusion
As technology ventures deeper into high-frequency ranges, the necessity of employing the appropriate connectors grows larger. The edge mount PCB connector and the bulkhead connector are both available to engineers as proven solutions to various dilemmas. GwaveTech is a leader in providing cutting-edge connector solutions, and industries can keep innovating without sacrificing anything.
