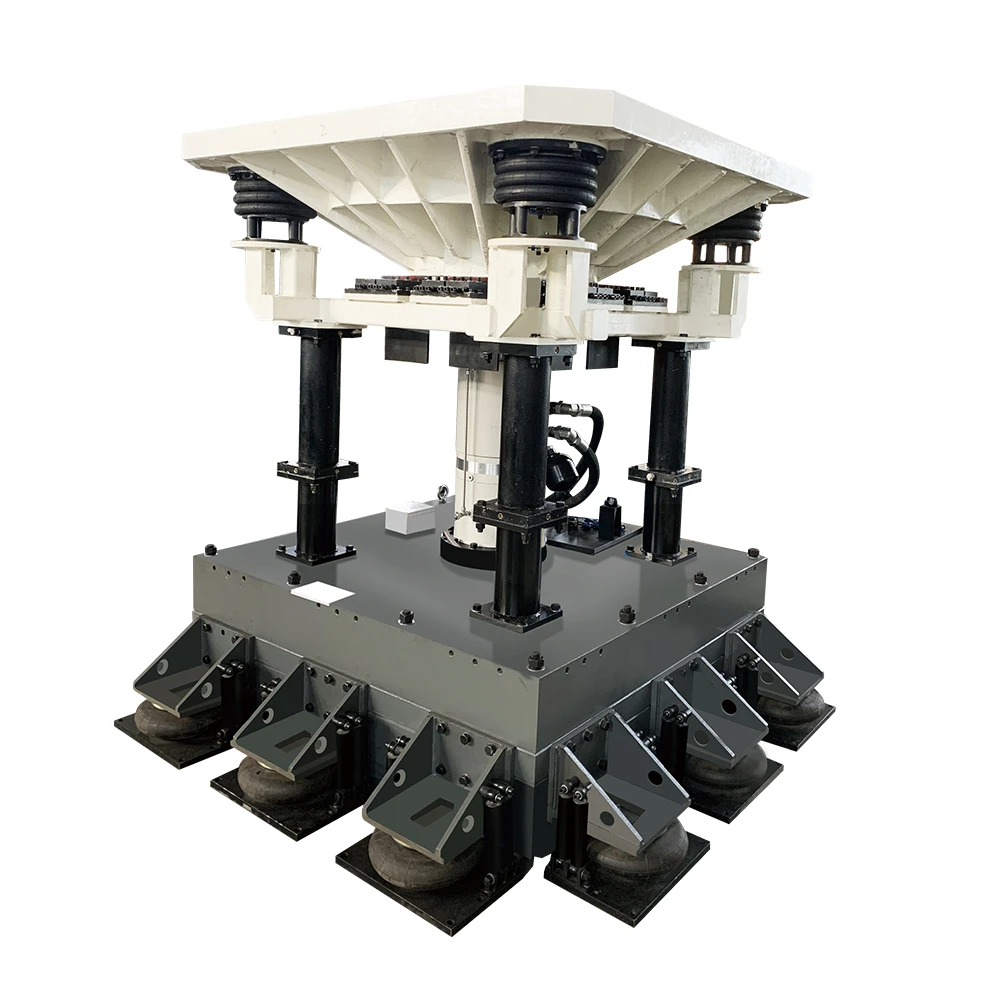

KRD70 series hydraulic vibration shaker is an electronic hydraulic servo vibration test machine with the advantages of fast response speed, high anti-load rigidity, flexible control mode, high performance, and high reliability.
The hydraulic shaker is a device that converts and amplifies the energy of the electro-hydraulic servo valve and converts the energy of the high-pressure liquid into a dynamic test system for the reciprocating motion of the simple actuator. Similar to the function of the electric hydraulic vibration table, it can complete the functions of sinusoidal vibration, random vibration, transient shock, and road spectrum simulation. KRD70 series hydraulic vibration shaker is widely utilized for all kinds of products in aviation, marine, automotive, earthquake, packaging, transportation, and other industries. The vibration shaker system complies with the standard MIL STD-810, ASTM D4728, IEC 60068-2, and ISTA relevant standards.
FEATURES OF KRD70 HYDRAULIC VIBRATION SHAKER
Vertical, horizontal, bi-directional, or multi-axis vibration forms are available
It is especially suitable for vibration tests requiring low frequency and high force
Multiple functions: can complete sine, random, and road spectrum simulation
Windows-based stable control system, with a variety of test control functions
Equipped with a data interface, it is convenient to expand remote control and has remote real-time display system data and protection functions
With over displacement, over current, overload, overheating, cooling system protection circuit, leakage protection, drive power supply protection
TECHNICAL SPECIFICATIONS OF KRD70 HYDRAULIC VIBRATION SHAKER
Note: 1. The parameters in the table are for reference only, and the parameters agreed upon by the supplier and the buyer shall prevail.
2. Force, displacement amplitude, table size and working frequency can be customized.
COMPOSITION OF KRD70 HYDRAULIC VIBRATION SHAKER
KRD70 hydraulic vibration shaker system includes a hydraulic vibration table, control cabinet, and oil source system.
KRD70 hydraulic vibration table is mainly composed of a table supporting mechanism, electro-hydraulic servo valve, actuator, working table, guide mechanism, oil filter, cooling system, etc.
When the hydraulic vibration test table vibrates vertically, it is driven by the vertical hydrostatic servo cylinder. When the horizontal vibration test is required, the hydrostatic servo cylinder can be turned over 90° and connected to the horizontal slip table to provide the drive. The hydraulic system and control system is controlled remotely by a computer.
CONTROL SYSTEM OF KRD70 HYDRAULIC VIBRATION SHAKER
KRD70 hydraulic vibration shake control system is mainly composed of a computer, display, acceleration sensor, and digital random vibration controller.
EHC-2000 electro-hydraulic servo control system, integrated motor remote start, automatic oil pressure adjustment, servo control, and vibration control, can comprehensively and intuitively display real-time oil pressure, voltage, current, and other alarm information.
Computer-controlled measurement, with a variety of test control functions, can display test data and curves in real time, store test results, and store and print test results.
Can complete sine, random, sine + random, random + random vibration control, classical shock control, resonance search and dwell, seismic wave simulation, and other controls.
