Vandan Steel & Engg. Co. are often recognized within the industry and supply ROCKSTAR 450 blades. As a customer-oriented industry, we offer these tables in several standards, widths, lengths, heat treatments and styles . Specifications for special applications also are provided. And our products have passed various quality standard certifications. The wear-resistant ROCKSTAR 450 PLATTEN welding plate has good general properties like formability, hardness, wear resistance and flatness. During the assembly process.
ROCKSTAR 450 must be delivered to customers in fitness . Medium to medium specially developed lubrication cycle with minimal ductility. ROCKSTAR 450 is that the ideal choice for yellow products in mining. Star 400 is that the ideal solution for applications like buckets, crushers and truck linings.It also can be found in silos, excavators, conveyor belts and silos. These include concrete buckets, shovel edges, dustcart floors, sweepers and dump trailers. Sit back and rest, if needed. it's impossible to use substitutes. within the temperature range above 250°C. Suitable for other heat treatments. The chemical composition of ROCKSTAR 450 wear plate is manganese, carbon, molybdenum, chromium, sulfur, phosphorus, silicon, boron and nickel. Blade sizes are used for various applications.

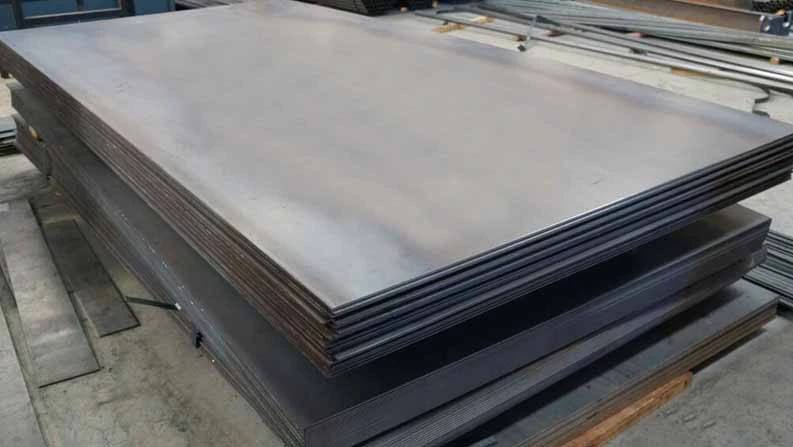

Rockstar 450 plates are a type of wear-resistant steel designed to endure harsh conditions and heavy wear. With a hardness rating of 450 HBW (Brinell Hardness), these plates are highly durable, offering exceptional resistance to abrasion and impact. The composition of Rockstar 450 steel includes a combination of high carbon content and other alloying elements, making it ideal for applications where longevity and strength are paramount.
Applications of Rockstar 450 Plates
These plates are widely used in industries such as:
- Mining and Earthmoving: Dump trucks, excavators, and bulldozers often use Rockstar 450 plates for durability and resistance to wear caused by abrasive materials like rocks and sand.
- Construction: Heavy-duty cranes, concrete mixers, and other equipment benefit from the wear-resistant properties of Rockstar 450 steel.
- Manufacturing: Used in manufacturing components for crushers, screens, and other machinery.
- Defense and Automotive: Rockstar 450 plates are also used in armored vehicles and high-strength automotive components.
Key Features of Rockstar 450 Plates
- Wear Resistance: Exceptional resistance to abrasion ensures a longer lifespan of machinery and components.
- Toughness: The plates are designed to handle heavy impact without deforming.
- High Performance: Suitable for extreme working environments, ensuring reliable operation over time.
- Versatility: Available in various sizes and thicknesses, Rockstar 450 plates can be customized for different applications.
These inserts are equipped with heated cutting edges. These panels are usually easy to finish using various processes, like cutting, testing, forming, machining, polishing, etc. ROCKSTAR 450 printing plates must undergo strict control before being delivered to global customers.These panels include durability and pitting test, X-ray test, ultrasonic test, mechanical strength test, chemical composition control, etc. -EN10204/3.1b, third-party test report.
ROCKSTAR 450 Plate Specification :
- Item: Abrasion Resistant Plate
- Thickness : 6mm to 75mm
- Length : 6,000mm to 12,000mm
- Width : 1,500mm to 2,500mm
- Production : Hot-Rolled (HR) / Cold-Rolled (CR)
- Applications : concrete industry, metallurgy, fan industry, coal industry, mining machinery, construction machinery,etc.
- Heat Treatment: N, Q+T
- Material : ROCKSTAR 450 Plates, ROCKSTAR 450 Abrasion Resistant Steel Plates, ROCKSTAR 450 Wear Resistant Plates
ROCKSTAR 450 PLATES CHEMICAL COMPOSITION
Rockstar 450 Chemical Composition (%)Plate thicknessCMnPSSiCrNiMoBCEPCMmmmax %max %max %max %max %max %max %max %max %maxmax6.0 – 20.00.301.600.0250.0100.701.000.600.600.0040.520.3421.0 – 40.00.301.600.0250.0100.701.000.600.600.0040.600.4041.0 – 50.00.301.600.0250.0100.701.000.600.600.0040.650.50
ROCKSTAR 450 PLATES MECHANICAL PROPERTIES
425-475 BHN (On a milled surface 0.5-2 mm below the plate surface)HardnessYield Strength (MPa)Tensile Strength (MPa)% Elongation (L0=50 mm)Impact at -20°C (In Joules)Typical values for 20 mm plate thickness115013501230
Conclusion
Rockstar 450 plates play a critical role in heavy-duty industries where durability, wear resistance, and performance are non-negotiable. India, with its extensive steel production capabilities, offers a range of trusted manufacturers that cater to both domestic and global markets. Whether for mining equipment, construction machinery, or defense applications, Rockstar 450 plates from Indian manufacturers are a reliable choice for top-notch quality and performance.
If you’re looking for robust and long-lasting wear-resistant steel, India’s Rockstar 450 plate manufacturers are ready to meet your requirements.
