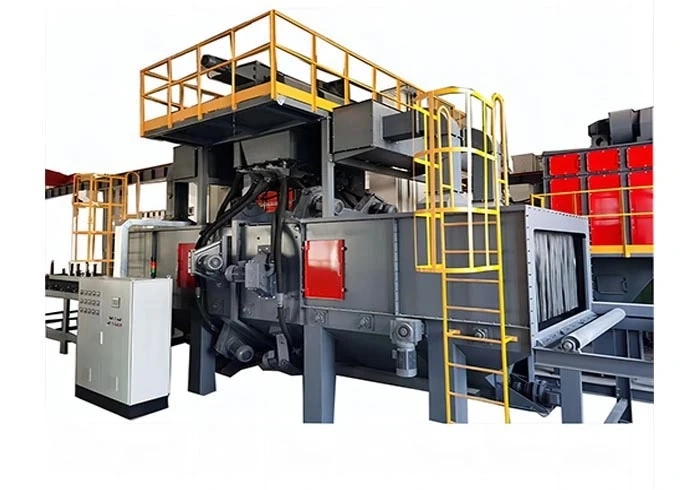

We provide cutting-edge short blast machine. These machines are instrumental in preparing surfaces for a wide range of applications. Shot blasting serves the crucial function of cleaning, descaling, and strengthening materials by propelling abrasive media at high velocities. Our machines are employed in diverse industries, from automotive and aerospace to construction and foundry, ensuring impeccable surface quality, optimal adhesion for coatings, and enhanced material longevity. Our commitment to excellence makes us a trusted partner in surface preparation solutions.
Key Components of Shot Blasting Machines
Blast Wheel
The blast wheel is the heart of the shot blasting machine. It consists of a motor-driven impeller that throws the abrasive material onto the surface being treated. The speed and direction of the blast wheel can be adjusted to control the intensity and coverage of the blasting.
Abrasive Media
Shot blasting machines use different types of abrasive media, such as steel shot, steel grit, or aluminum oxide. The abrasive media is propelled by the blast wheel and impacts the surface to remove contaminants or achieve desired surface finish.
Recovery System
Shot blasting machines are designed to recover and recycle abrasive media. The recovery system consists of a combination of separators, screens, and elevators to separate the reusable media from the debris.
Dust Collector
As shot blasting creates dust and debris, a dust collector is essential to remove and filter the airborne particles. It ensures a cleaner and safer working environment, preventing contamination and protecting the operator's health.
Control Panel
Shot blasting machines are equipped with a control panel that enables operators to set and adjust various operating parameters, such as blast wheel speed, conveyor speed, and abrasive flow rate.
Conveyor System
A conveyor system, such as a rubber belt or roller conveyor, moves the workpieces through the shot blasting chamber, ensuring uniform and thorough coverage.
FAQs of Shot Blasting Machine
What is a shot blasting machine used for?
A shot blasting machine is used for surface preparation, cleaning, and removing rust, scale, paint, and other contaminants from various materials and surfaces, including H beam shot blasting machines, rotary drum shot blasting machines, and other types of shot blasting machines.
What types of materials can be treated with a shot blasting machine?
Shot blasting machines can treat a wide range of materials, including steel, aluminum, concrete, glass, plastics, and more.
What are the advantages of using a shot blasting machine?
Some advantages of shot blasting machines include efficient and uniform surface preparation, cost-effectiveness, reduced environmental impact compared to chemical cleaning methods, and improved adhesion for coatings and paints.
Is shot blasting environmentally friendly?
Shot blasting is considered a relatively environmentally friendly method as it does not use chemicals, only abrasive media. However, proper dust collection systems should be in place to minimize airborne particles and protect the environment.
Are shot blasting machines safe to use?
Shot blasting machines can be safe to use if proper safety precautions are taken. Operators should wear appropriate personal protective equipment (PPE), follow safety guidelines, and receive proper training.
Automatic shot blasting machine working principle
The core working principle of an automatic shot blasting machine revolves around the controlled propulsion of abrasive media towards the target workpiece. This process begins with the loading of the selected abrasive media, such as steel shot, glass beads, or other suitable blasting materials, into a dedicated hopper or feed system within the shot blasting machine for sale.
Once the workpiece to be blasted is securely positioned within the shot blast machine's blast chamber, the automated system goes into action. High-pressure air is used to propel the abrasive media through one or more strategically positioned blast nozzles. These nozzles are aimed precisely at the target surface of the workpiece, ensuring the abrasive media strikes the desired areas.
To achieve even and consistent surface treatment, the workpiece is often rotated or manipulated during the blasting process. This can be done through motorized part manipulation mechanisms or automated part handling systems integrated into the shot blasting machine. As the abrasive media strikes the workpiece, the used media falls to the bottom of the blast chamber.
An automated media recovery system, such as a conveyor belt or suction system, collects the used media and recirculates it back to the feed system, allowing for continuous operation. Simultaneously, a powerful dust collection and filtration system is employed to capture and contain the generated dust and debris, ensuring a clean and safe working environment.
The entire operation of the automatic shot blasting machine is typically controlled by a programmable logic controller (PLC) or other advanced automated control system. This allows for precise control over critical process variables, such as blast duration, media flow, part rotation speed, and other parameters, to deliver consistent, high-quality surface preparation results with minimal operator intervention.
For short blast machine price, contact us.
