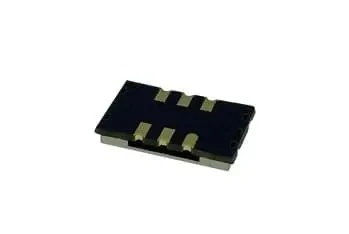

The BT0914A series is a Surface-Mount Device (smd tcxo oscillator) package designed for applications requiring ultra-stable, low phase noise Temperature Compensated Crystal Oscillators (TCXOs). Below are the detailed specifications:
General Specifications:
Series: BT0914A
Package Size: 14.65mm x 9.35mm
Output Waveform: CMOS, Sine wave
Supply Voltage Options: 3.3V, 5.0V
Operating Temperature Range:
Standard: -20°C to 70°C
Extended: -40°C to 85°C
Key Features:
High Frequency: Suitable for applications requiring high-frequency stability.
Low Phase Noise: Ensures minimal signal degradation and high performance in sensitive applications.
Dimensions:
Overall Dimensions: 14.0mm x 9.0mm
Frequency Specifications:
Frequency Range: 10MHz to 125MHz
Frequency Stability Range: ±0.1ppm to ±2.0ppm
Phase Noise Performance:
Typical Phase Noise: -145dBc/1kHz at 100MHz
Applications:
Telecommunications
GPS
Instrumentation
Networking
Other applications requiring high precision and stability
This tcxo smd is ideal for environments where maintaining signal integrity and stability is critical, and it offers flexibility with its wide frequency range and multiple supply voltage options.
We can also provide kinds of electronic crystal oscillator for sale, if you are interested, please contact us.
