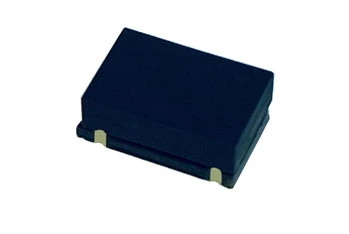

High Precision TCXO

The high temperature oscillator (TCXO) is a cutting-edge timing solution designed to deliver exceptional frequency stability and accuracy across varying environmental conditions. These oscillators are essential for applications requiring stringent timing precision, robust operational consistency, and minimal frequency drift. Below is a detailed overview of their features, specifications, and applications:

Key Features of high precision oscillator

Exceptional Frequency Stability

High Precision TCXOs provide outstanding frequency stability over temperature ranges, ensuring reliable performance in critical applications.

Stability ranges from ±0.28ppm to ±1.5ppm over industrial temperature ranges (-40°C to +85°C).

Advanced Temperature Compensation

Designed with sophisticated analog temperature compensation techniques, these TCXOs minimize frequency drift caused by temperature fluctuations.

Low Phase Noise

With phase noise as low as -140dBc/1kHz @ 10MHz, High Precision TCXOs ensure clean and stable signals, reducing jitter and enhancing system performance.

Compact Ceramic Package

The BT0503D/E series features a compact 5.2 x 3.4mm ceramic package with side pads, making it ideal for space-constrained designs.

Wide Frequency Range

Supports a frequency range of 10MHz to 60MHz, catering to a variety of applications.

Industrial Temperature Range

Operates reliably across a wide temperature range of -40°C to +85°C, making it suitable for harsh environments.

Applications of High Precision TCXO

High Precision TCXOs are indispensable in systems requiring accurate frequency control, robust performance, and minimal drift. Key applications include:

1. GPS and Navigation Systems

Enhanced Location Accuracy:

High Precision TCXOs ensure precise timing, which is critical for accurate GPS positioning and navigation.

Reliable Performance in Harsh Environments:

Their ability to maintain stability across wide temperature ranges makes them ideal for outdoor and mobile GPS systems.

2. Telecommunications

Base Stations and Networking Equipment:

Provide stable clock signals for 5G base stations, optical transmission systems, and high-speed networking equipment.

Frequency Synchronization:

Ensure precise frequency synchronization in telecommunication networks, reducing errors and improving data integrity.

3. Instrumentation and Test Equipment

Precision Measurements:

Deliver stable reference signals for oscilloscopes, spectrum analyzers, and other precision instruments.

Calibration and Testing:

Enable accurate testing and calibration of electronic components and systems.

4. Industrial and IoT Applications

Automation Systems:

Ensure reliable timing in industrial automation and control systems.

IoT Devices:

Provide precise timing for IoT devices operating in diverse environmental conditions.

5. Aerospace and Defense

Mission-Critical Systems:

Used in aerospace and defense applications where performance, reliability, and frequency stability are paramount.

Radar and Communication Systems:

Support high-frequency signal processing in advanced radar and communication systems.

6. Consumer Electronics

Wearables and Portable Devices:

Compact size and low power consumption make High Precision TCXOs ideal for portable and battery-powered devices.

High-Performance Audio Systems:

Ensure clean and stable clock signals for high-fidelity audio processing.

Why Choose High Precision TCXO?

Unparalleled Accuracy:

With frequency stability as tight as ±0.28ppm, High Precision TCXOs deliver the accuracy required for critical applications.

Robust Performance Across Temperatures:

Designed to operate reliably in industrial temperature ranges (-40°C to +85°C), ensuring consistent performance in harsh environments.

Low Phase Noise:

Exceptional phase noise performance enhances signal integrity, reducing jitter and improving overall system reliability.

Compact and Versatile Design:

The small ceramic package with side pads allows for easy integration into space-constrained designs.

Dependability for Critical Applications:

High Precision TCXOs meet stringent industry standards, providing the reliability and precision needed for long-term operational success.

BT0503D/E: A High-Performance TCXO Solution

The BT0503D/E series is a standout High Precision TCXO, offering a compact design, exceptional stability, and low phase noise. Its advanced temperature compensation technology ensures reliable performance across a wide range of environmental conditions, making it the ultimate solution for applications requiring accurate frequency control.

Key Highlights of BT0503D/E:

Dimensions: 5.2 x 3.4mm ceramic package with side pads.

Frequency Range: 10MHz to 60MHz.

Stability: ±0.28ppm to ±1.5ppm over -40°C to +85°C.

Phase Noise: -140dBc/1kHz @ 10MHz.

Conclusion

High Precision TCXOs, such as the BT0503D/E, are the ultimate choice for applications requiring exceptional frequency stability, accuracy, and reliability. Whether in GPS, telecommunications, instrumentation, or industrial systems, these oscillators deliver the performance and precision needed for next-generation technologies. By investing in High Precision TCXOs, you ensure long-term operational success and unparalleled accuracy in your critical systems.

For more information about TCXO crystal oscillator, please feel free to contact us!
