Stratum III TCXO

A stratum 3 oscillator offers high precision and stability for telecommunications and networking applications. It maintains accurate frequency control over a wide temperature range, ensuring reliable performance in demanding environments. Ideal for synchronization tasks, it meets stringent stratum 3 timing requirements.

Stratum 3 TCXTypes

BT0503C

5.0X3.2mm, SMD, Ultra Stable, Fast Warming-Up TCXO

The BT0503C temperature compensated oscillator with 5.2x3.4mm is designed for use in a range of ultra stability applications with extended operating temperature ranges(-50~95℃).

Dimensions: 5.0x3.2mm

Freq. Range: 10~52MHz

Freq. Stability Over Temp.: ±0.1~±0.5ppm@-40~85℃

Phase Noise: -140dBc/1kHz@10MHz

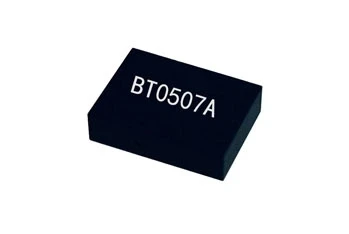

BT0507A/B

7.0X5.0mm, SMD, Stratum Ⅲ Level, Ultra Stable with Wide Temperature Range TCXO

It is one of classic series.This TCXO offers frequencies from 10MHz to 52MHz, ultra stability and other specification options including industrial operating temperature range. Please contact us for your requirements.

Dimensions: 7.0x5.0mm

Freq. Range: 10~52MHz

Freq. Stability Over Temp.: ±0.05~±1.0ppm@-40~85℃

Phase Noise: -142dBc/1kHz@10MHz

BT0507C/D

SMD Package (7.0×5.0mm), Metal Back, Industrial Temperature TCXO

The BT0507C/D features a high level of frequency stability, clipped sine OR cmos output and analogue compensation.

LTE,BTS,CATV, Precision postioning, Test&Measurement Equipment

BT0507E

SMD Package (7.0×5.0mm), Extreme Low Phase noise, Ultra Stable TCXO

The BT0503A/B features a small 5x7mm package. It is designed for use in a range of ultra stability applications, like precision instruments.

Dimensions: 7.0x5.0mm

Freq. Range: 10~60MHz

Freq. Stability Over Temp.: ±0.28~±0.5ppm@-55~85℃

Phase Noise: -150dBc/1kHz@10MHz

BT0507M

SMD Package (7.0×5.0mm), High Frequency Range, Ultra Low Phase Noise TCXO

This TCXO offers nominal frequency 100MHz with low phase noise.

Dimensions: 7.0x5.0mm

Freq. Range：80~125MHz

Freq. Stability Over Temp.：±0.28~±1.5ppm@-40~85℃

Phase Noise：-146dBc/1kHz@100MHz

BT0914A

SMD Package (9.35*14.65mm), Ultra Stable, Low Phase Noise TCXO

BT0914A offers frequencies up to 122.88MHz, low phase noise, ultra stability and other specification options including industrial operating temperature range.

Features: High Frequency; Low Phase Noise

Dimensions: 14.0x9.0mm

Freq. Range: 10MHz~125MHz

Freq. Stability Range: ±0.1ppm~±2.0ppm

Typical Phase Noise: -145dBc/1kHz@100MHz

BT1220

DIP Package (12.6*20.2mm), Ultra Wide Operating Temp, Low Phase Noise TCXO

This serie features a high level of frequency stability, frequency adjustment, Sine wave output and high frequency.

Features: High Frequency; Low Phase Noise

Dimensions: 14.0x9.0mm; 12.0x20.0mm

Freq. Range: 10MHz~125MHz

Freq. Stability Range: ±0.1ppm~±2.0ppm

Typical Phase Noise: -145dBc/1kHz@100MHz

BT3225AH

SMD Package (3.2×2.5mm), Ultra Stable, Stratum Ⅲ Level TCXO

The TCXO has miniature 3.2 x 2.5mm package.

It could provide cmos output. Its nominal frequecy is 20MHz, 40MHz. Customized is available.

Features：High Precision，High Stability， Low Phase Noise

Dimensions: 3.2x2.5mm

Freq. Range: 20~60MHz

Nominal Frequency: 20,25,40

Freq. Stability Range：±0.28~±0.5ppm

Operating Temperature：-40~105℃

Phase Noise：-142dbc@1KHz@20MHz

Why Our Stratum III TCXO Stands Out in the Market

Our Stratum III TCXO (Temperature Compensated Crystal Oscillator) stands out in the market for several compelling reasons:

Unmatched Precision: Our TCXOs offer exceptional frequency stability, ensuring accurate timing even in fluctuating temperatures.

Advanced Technology: Utilizing state-of-the-art temperature compensation techniques, our Stratum III TCXOs deliver consistent performance across a wide range of environmental conditions.

Reliability: Built to meet stringent industry standards, our TCXOs provide dependable operation, making them ideal for critical applications such as telecommunications, GPS, and data centers.

Customization: We offer tailored solutions to meet specific customer requirements, ensuring optimal performance for your unique applications.

Competitive Pricing: Despite their advanced features, our Stratum III TCXOs are competitively priced, offering excellent value for your investment.

Expert Support: Our team of experienced engineers is available to provide technical support and guidance, ensuring seamless integration and optimal performance.

Stratum III TCXO: Precision and Stability You Can Rely On

Stratum III TCXO (Temperature Compensated Crystal Oscillator) offers unparalleled precision and stability, making it the ideal choice for applications requiring high-accuracy timing. With its advanced temperature compensation technology, Stratum III TCXO ensures consistent performance across a wide range of environmental conditions. This reliability is crucial for telecommunications, GPS, and other critical systems where timing accuracy is paramount. Our Stratum III TCXO products are designed to meet stringent industry standards, providing you with the confidence and dependability you need. Invest in Stratum III TCXO to enhance your system’s performance and ensure long-term operational success.

We can also provide kinds of oscillator products for sale, if you are interested, please contact us.
