Ultimate Guide to 10G SFP+ AOC Cables | Fibrecross

In today’s data-driven world, high-speed, low-latency connectivity is non-negotiable. A 10G SFP+ Active Optical Cable (AOC) delivers reliable 10 Gbps links over distances up to 100 meters, all while maintaining signal integrity and reducing power consumption. This guide covers practical insights—from what AOCs are, to choosing the right cable, installing it correctly, and maintaining peak performance—so network engineers and IT managers can make informed decisions for their data centers and enterprise networks.

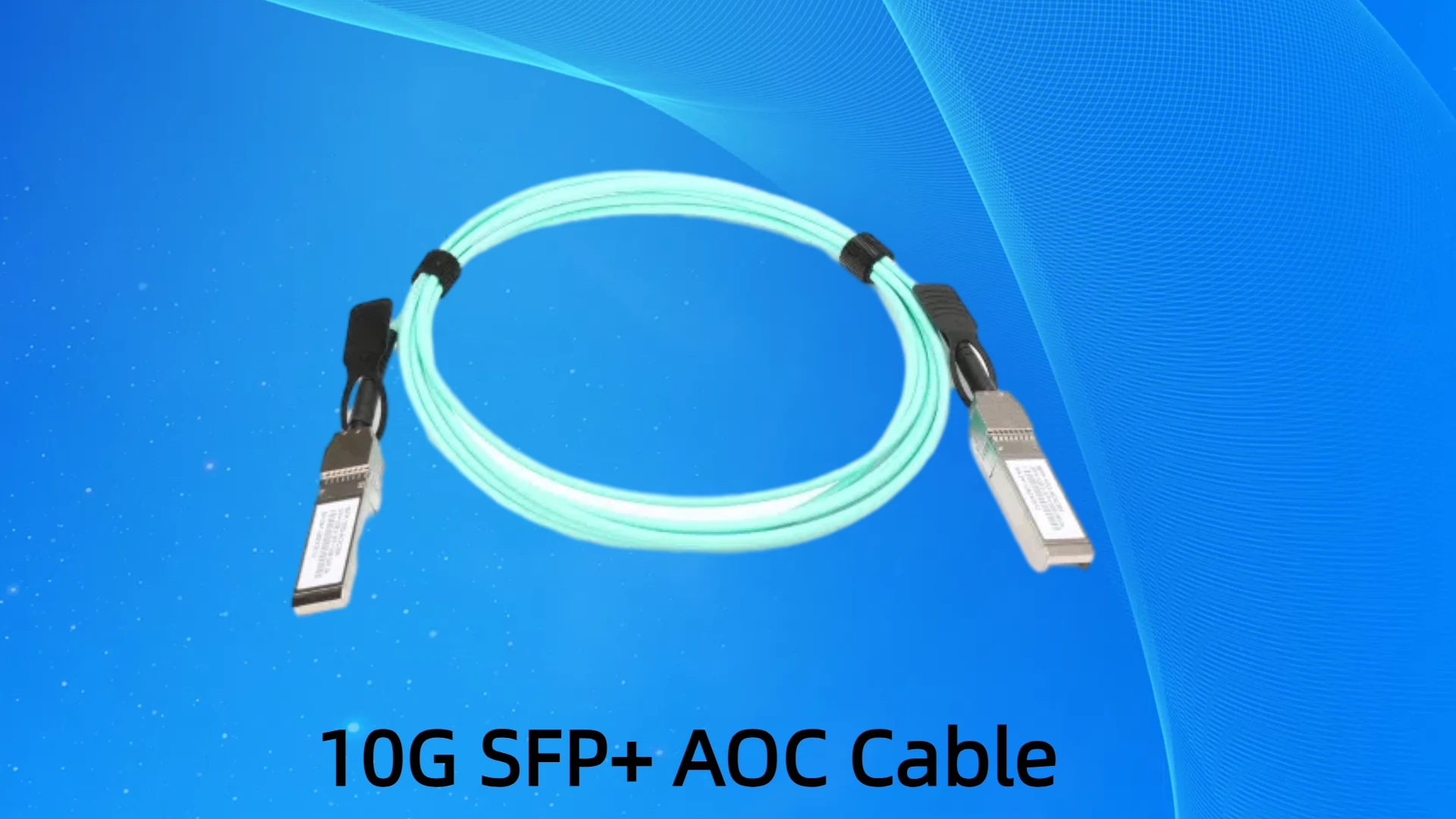

What Is a 10G SFP+ AOC Cable?

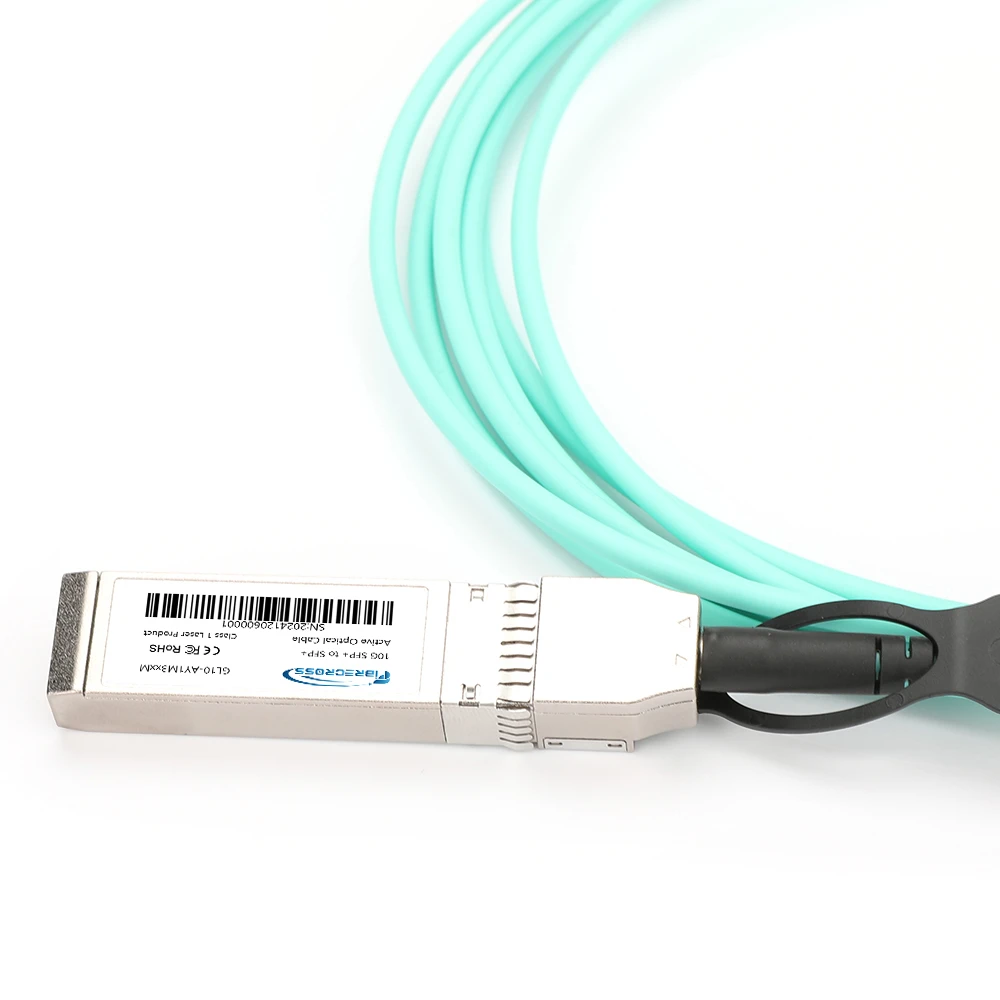

An Active Optical Cable (AOC) combines laser-driven optical transceivers with a fiber optic cable into a single, pluggable SFP+ form factor. Unlike Direct Attach Copper (DAC) cables, AOCs convert electrical signals into optical pulses at each end, offering:

• Higher bandwidth over longer distances (up to 100 m)
• Lower EMI/RFI susceptibility
• Reduced weight and smaller bend radius

By integrating transceivers and fiber, 10G SFP+ AOCs provide plug-and-play simplicity without separate optic modules.

Key Advantages of 10G SFP+ AOCs

1. Extended Reach: Support for distances from 1 m up to 100 m, ideal for large-scale data centers and campus backbone links.
2. Energy Efficiency: Lower power consumption (~0.5 W per end) compared to DAC alternatives at longer runs.
3. EMI Immunity: Optical transmission is immune to electromagnetic interference, ensuring stable performance in noisy electrical environments.
4. Hot-Swappable: Standard SFP+ interface allows live cable replacements without downtime.
5. Compact & Lightweight: Thinner, more flexible cable bundles facilitate airflow and cable management.

Typical Use Cases

• Leaf-Spine Architectures: High-density 10G uplinks between aggregation and access switches.
• Server-to-TOR (Top-of-Rack) Links: Short to medium runs within racks, supporting virtualization and hyper-convergence.
• Inter-Rack Connectivity: Cross-rack links up to 100 m without signal degradation.
• High-Performance Computing (HPC): Low-latency clusters that demand consistent 10 Gbps throughput.

How to Choose the Right 10G SFP+ AOC Cable

When specifying your AOC, consider:

• Length Requirements: Choose from 1 m, 3 m, 5 m, 10 m, up to 100 m to match rack layouts.
• Connector Compatibility: Ensure switch and server SFP+ ports support your brand’s transceiver EEPROM (vendor-locked vs. open-programmed).
• Certification & Testing: Look for cables tested to IEEE 802.3ae standards, with BER ≤ 10⁻¹².
• Operating Temperature: For data-center environments, verify an operating range of 0 °C to 70 °C (or extended for harsh environments).
• Warranty & Support: A minimum 3-year warranty and responsive technical support can save valuable uptime.

Installation Best Practices

1. Inspect Connectors: Before plugging in, verify SFP+ ends are clean and dust-free.
2. Orient Properly: Align the latch tab and fully seat until you hear a click.
3. Avoid Tight Bends: Respect the minimum bend radius (typically 30 mm) to prevent micro-bends.
4. Label Cables: Use color-coded tags or printed labels indicating port numbers and lengths for easy troubleshooting.
5. Test Post-Install: Run loopback or Link Integrity tests to confirm 10 Gbps link up and error-free operation.

Maintenance & Lifecycle Management

• Periodic Inspection: Check for cable damage every 6 months.
• Firmware Updates: Some managed switches allow EEPROM updates—keep firmware current.
• Spare Inventory: Stock common lengths (1 m, 3 m, 10 m) to minimize replacement lead times.
• Environmental Monitoring: Track temperature and airflow to prevent overheating of cables and transceivers.

Frequently Asked Questions

Q1: What’s the maximum distance of a 10G SFP+ AOC cable?

Up to 100 meters over OM3 multimode fiber and up to 150 meters on OM4, depending on cable design.

Q2: Can I mix AOCs and DACs on the same switch?

Yes—most switches support mixed media, but verify port power budgets and vendor compliance.

Q3: How do I clean an AOC connector?

Use a dry or isopropyl-dampened lint-free swab, gently rotating inside the ferrule to remove debris.

Q4: Do AOCs consume more power than DACs?

For runs under 5 m, DACs may use less power; beyond ~10 m, AOCs are generally more energy-efficient.

Q5: Are 10G SFP+ AOC cables hot-pluggable?

Absolutely—SFP+ AOCs support hot-swap, allowing live replacements without network downtime.

By following this ultimate guide to 10G SFP+ AOC cables, network professionals can ensure robust, high-speed connectivity with minimal hassles. Whether you’re scaling out a data center or optimizing rack-to-rack links, the right AOC choice will deliver performance, reliability, and ROI for years to come.
