In today's digital age, cameras are omnipresent. Whether it's the smartphone in your pocket, capturing precious moments, or the surveillance cameras safeguarding your property, they're everywhere. But have you ever pondered, what is camera module? If you're a photography buff, a tech - enthusiast, or involved in product development, grasping the concept of camera modules is crucial. In this article, we'll take a deep dive into the world of camera modules, exploring their components, functions, and applications.

What Exactly is a Camera Module?

A camera module, in simple terms, is a self - contained unit. It combines all the essential components needed to capture images or videos. Typically, it consists of a lens, an image sensor, and a circuit board with the necessary processing electronics. Camera modules are engineered to be compact and lightweight, making them perfect for integration into various devices.

Classic of Compact Camera Module

There are several types of camera modules, each with its own characteristics.

Compact Camera Modules (CCMs) have become a staple in mobile photography and imaging technology. These small yet powerful components are crucial for the high - quality photos and videos we take daily with our smartphones. They are highly compact, fitting neatly into the slim designs of modern mobile devices. Despite their small size, they offer significant functionality, typically comprising an image sensor, a lens, and a signal processing unit. CCMs are adaptable and can be customized to meet the specific needs of different device manufacturers. For example, some are optimized for low - light photography with larger pixels to capture more light, while others are designed for high - speed photography, able to take multiple shots rapidly.

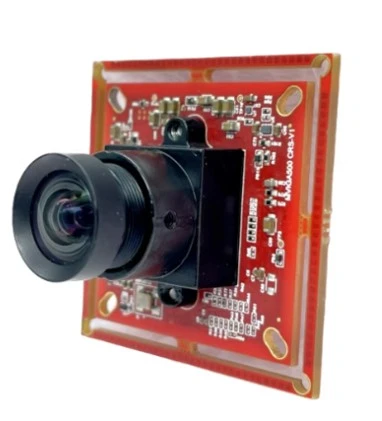

USB Camera Modules are known for their ease of connection. They can be easily plugged into a USB port on a computer, tablet, or other device with a USB interface. This makes them popular for applications such as video conferencing, live streaming, and basic photography on devices that may not have built - in camera capabilities or where a simple, externally - connected camera is sufficient.

MIPI/FPC Camera Modules use MIPI (Mobile Industry Processor Interface) or FPC (Flexible Printed Circuit) technology for data transfer and connection. MIPI offers high - speed, low - power data transmission, which is beneficial for mobile devices where power consumption and data transfer speed are crucial. FPC, on the other hand, provides a flexible and space - saving connection solution. These modules are often used in mobile devices and other compact electronics, enabling high - quality image capture while maintaining a small form factor and efficient data transfer.

iPhone16pro max with three camera modules

Components of a Camera Module

The main components of the camera module are:

• Lens
• Infrared filter (IR Filter)
• Image sensor (Sensor IC)
• Digital Signal Processing (DSP)
• Soft Board or PCB

Lens

The lens is the front - end part of the camera module, acting as the "eye" that captures the scene. It focuses light onto the image sensor, with different types available. Fixed - focus lenses, simple and cost - effective, are commonly used in many budget smartphones. Market research shows that around 70% of budget smartphones rely on fixed - focus lens - equipped camera modules. Auto - focus lenses, on the other hand, adjust the focus automatically to ensure sharp images, often found in high - end devices.

Infrared filter (IR Filter)

Placed in front of the image sensor, the IR filter plays a crucial role in image quality. It blocks infrared light, which, if not filtered, can cause color distortion and reduce the clarity of the image. This is especially important in cameras used in various lighting conditions, as it helps in capturing accurate colors and details.

Image sensor (Sensor IC)

As the heart of the camera module, the image sensor transforms the light passing through the lens and the IR filter into electrical signals. These signals are then processed into digital images or videos. There are two main types: Charge - Coupled Device (CCD) and Complementary Metal - Oxide - Semiconductor (CMOS). CMOS sensors are more prevalent in modern camera modules, especially in mobile devices, due to their lower power consumption and cost - efficiency. In fact, over 90% of smartphone camera modules use CMOS sensors.

Digital Signal Processing (DSP)

This component is responsible for processing the raw data from the image sensor. It performs functions like image enhancement, color correction, and compression. High - end camera modules in DSLR - like mirrorless cameras have advanced DSP units that can handle complex algorithms, resulting in better - quality images. For example, they can adjust contrast, sharpness, and color saturation to produce professional - looking photos.

Soft Board or PCB

The Soft Board or Printed Circuit Board (PCB) is the physical backbone of the camera module. It houses all the necessary components, including the lens, IR filter, image sensor, and DSP, and provides the electrical connections between them. The PCB also contains the circuitry to control the operations of these components, ensuring seamless communication and proper functioning of the entire camera module
