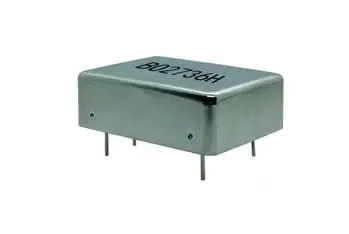

The BO2736H and BO2736L series of OCXOs (Oven Controlled Crystal Oscillators) are high-performance timing solutions designed for applications requiring exceptional frequency stability, low phase noise, and fast warm-up times. These OCXOs are ideal for use in telecommunications, GPS, test and measurement equipment, and other precision systems. Below is a detailed overview of their specifications and features:
Key Features
Tight Frequency Stability
Offers a wide range of frequency stability options, from ±3ppb to ±500ppb, ensuring precise and reliable performance in critical applications.
Low Phase Noise
Exceptional phase noise performance, with values as low as -170dBc/1kHz @ 10MHz and -165dBc/1kHz @ 100MHz, making these OCXOs ideal for applications requiring clean and stable signals.
Fast Warm-Up Time
Designed for quick stabilization, ensuring minimal delay in achieving optimal performance after power-up.
Wide Operating Temperature Range
Supports a variety of temperature ranges, from standard (-0℃ to +70℃) to extreme conditions (-55℃ to +95℃), making them suitable for diverse environments.
Output Waveform Options
The BO2736H provides a sine wave output, while the BO2736L offers both LVCMOS and sine wave outputs, catering to different system requirements.
Compact Dimensions
With a size of 36mm x 27mm x 13mm, these OCXOs are compact and easy to integrate into space-constrained designs.
Applications
The BO2736H and BO2736L low power ocxo are designed for high-precision and high-reliability applications, including:
Telecommunications
LTE, BTS (Base Transceiver Stations), and CATV systems requiring stable and low-noise clock signals.
GPS and Navigation Systems
Enhancing timing accuracy and signal stability for GPS tracking and navigation.
Test and Measurement Equipment
Providing precise timing for oscilloscopes, spectrum analyzers, and other precision instruments.
LAN and Networking Equipment
Ensuring reliable synchronization in high-speed data transmission systems.
Industrial and Automotive Electronics
Supporting advanced driver-assistance systems (ADAS), radar systems, and industrial automation.
High-Speed Computing
Delivering stable clock signals for AI servers, cloud platforms, and supercomputers.
Why Choose BO2736H and BO2736L OCXO?
Exceptional Stability: Tight frequency stability ensures reliable performance in critical applications.
Low Phase Noise: Ideal for systems requiring clean and stable signals, such as telecommunications and test equipment.
Versatile Operating Temperatures: Suitable for both standard and extreme environmental conditions.
Compact Design: Easy integration into space-constrained systems.
Customizable Options: Tailored solutions for specific application needs.
These OCXOs are a reliable choice for industries demanding high precision, stability, and performance in their timing solutions.
