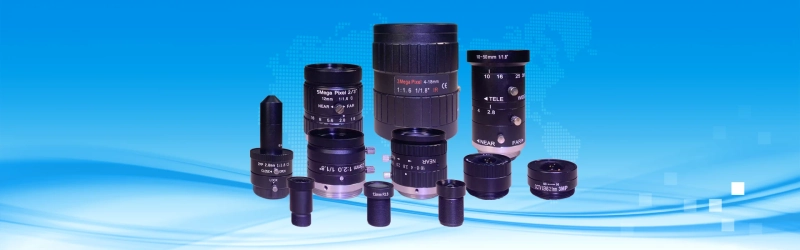

Achromatic S-Mount Lens for Color Imaging

In the world of optics, achieving flawless color reproduction and sharpness in imaging systems is non-negotiable. Whether for industrial automation, medical diagnostics, or consumer electronics, the demand for high-performance lenses that eliminate color fringing and distortion has never been greater. Enter the Achromatic S-Mount Lens for Color Imaging—a revolutionary solution designed to deliver unparalleled precision in compact form factors.

What Is an Achromatic S-Mount Lens for Color Imaging?

An Achromatic S-Mount Lens for Color Imaging is a specialized optical component engineered to correct chromatic aberration—a common issue where different wavelengths of light focus at varying points, causing color fringing and blurred edges. By combining two or more lens elements with differing dispersion properties, these lenses ensure all colors converge at the same focal plane, producing crisp, true-to-life images.

The “S-Mount” designation refers to the lens’s thread size (M12 x 0.5), a standard in the industry for compatibility with compact cameras and sensors. This makes the Achromatic S-Mount Lens for Color Imaging ideal for applications where space is limited but performance cannot be compromised.

How Does an Achromatic S-Mount Lens Work?

Chromatic aberration occurs because light’s refractive index varies with wavelength. Shorter wavelengths (blue/violet) bend more than longer ones (red/orange), leading to misalignment. Achromatic lenses counter this by pairing a high-dispersion element (like flint glass) with a low-dispersion element (crown glass). This combination balances the light paths, ensuring all colors reach the sensor simultaneously.

For color imaging, this correction is critical. Without it, even minor aberrations can degrade image quality, especially in high-resolution systems. The Achromatic S-Mount Lens for Color Imaging addresses this by optimizing for visible light (400–700 nm), making it perfect for RGB sensors and full-color applications.

Key Benefits of Achromatic S-Mount Lenses for Color Imaging

• 1. Superior Color Accuracy: By eliminating chromatic aberration, these lenses ensure vibrant, true-to-life colors, essential for tasks like quality inspection or medical imaging.
• 2. Compact Design: The S-Mount format allows integration into space-constrained devices without sacrificing performance.
• 3. Cost-Effectiveness: Achromatic lenses are more affordable than apochromatic alternatives while still delivering excellent results for most color applications.
• 4. Versatility: Suitable for machine vision, barcode scanning, biometric systems, and more.

Applications of Achromatic S-Mount Lenses in Color Imaging

• Industrial Automation: In robotic vision systems, these lenses ensure precise part identification and defect detection.
• Medical Devices: Endoscopes and diagnostic tools rely on them for clear, distortion-free imaging.
• Consumer Electronics: Smartphones and drones use them to enhance camera performance in compact designs.
• Surveillance: Security cameras benefit from their ability to capture sharp images even in low-light conditions.

Choosing the Right Achromatic S-Mount Lens for Color Imaging

• Focal Length: Determines the field of view; shorter focal lengths offer wider angles.
• Aperture Size: Affects light intake; larger apertures suit low-light environments.
• Mount Compatibility: Ensure the lens fits your camera’s S-Mount thread.
• Wavelength Range: Verify it covers your application’s spectrum (typically 400–700 nm for color imaging).

FAQs

What is the difference between achromatic and apochromatic lenses?

Achromatic lenses correct chromatic aberration for two wavelengths (typically red and blue), while apochromatic lenses correct for three or more, offering even higher precision but at a higher cost.

Can achromatic S-mount lenses be used for monochrome imaging?

Yes, though they’re optimized for color, their aberration correction also benefits black-and-white systems by improving overall sharpness.

Are achromatic S-mount lenses weather-resistant?

Many models feature coatings for dust and moisture resistance, but check specifications for your application’s environment.

How do I clean an achromatic S-mount lens?

Use a microfiber cloth and lens-cleaning solution. Avoid abrasive materials that could scratch the coating.

Conclusion

The Achromatic S-Mount Lens for Color Imaging represents a leap forward in optical technology, combining precision, affordability, and compact design. By eliminating chromatic aberration, these lenses empower industries to achieve higher accuracy and reliability in their imaging systems.
