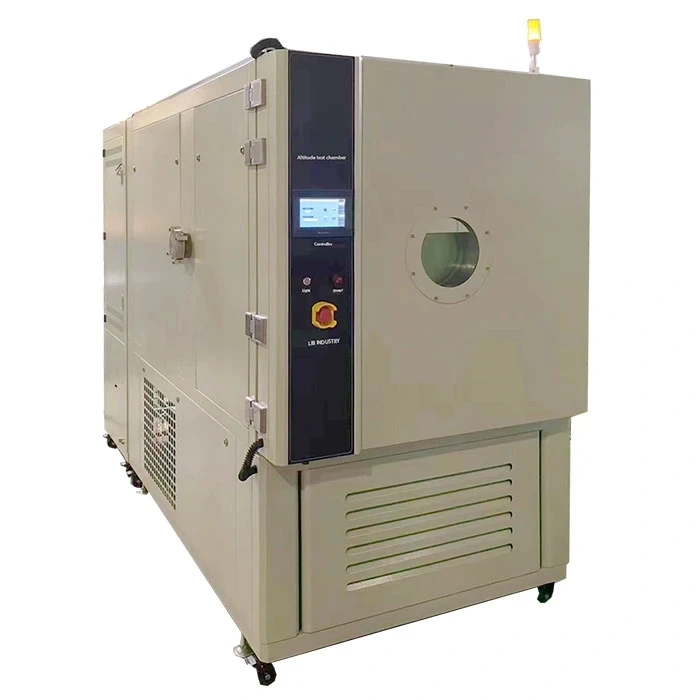

LIB altitude chamber for sale can simulate the air pressure at an altitude below 40,000 meters, and is used for combined temperature altitude humidity testing. The altitude test chambers can carry out low-pressure tests independently, and can also carry out comprehensive tests high temperature, low temperature and humidity. The high altitude test chamber is used to test the stability of the products when it is subjected to altitude, temperature, humidity, and comprehensive effects in the air or at high altitudes.
Model: A-1000
Standard: IEC 60068, IEC 60749, MIL-STD-202F
Altitude Chamber Features and Benefits
1. The altitude simulation chamber is a comprehensive environmental stress test chamber that combines temperature, humidity, and low air pressure.
2. The altitude test chamber can achieve atmospheric pressure ~ 0.5kPa pressure test conditions in the high altitude test chamber.
3. From obtaining customer needs, to discussing solutions, production, transportation, installation and commissioning, LIB can realize one-stop solutions.
4. LIB team responds quickly, has high work efficiency and can delivery the chamber as soon as possible.
Altitude Chamber Specifications
Model A-1000
Internal dimensions D 1500 W 1000 H 970 mm
External dimensions D 2050 W 1300 H 2200 mm
Temperature range —40℃ to +150℃
Humidity range 20% ~ 95% (more than 50Kpa can be controlled)
Temperature fluctuation ≤ ±0.5℃
Temperature deviation ≤ ±2.0℃
Temperature uniformity ≤ 2.0℃ (under normal pressure and no load)
Heating rate 3℃/min
Cooling speed 2℃/min
Pressure range Atmospheric pressure to 0.5kPa
Pressure deviation ± 2Kpa
Depressurization time Atmospheric pressure to 0.5k ≤30min
Pressure enclosure Manganese steel, surface spray treatment
Other outer wall materials Double-sided galvanized steel plate, surface spray treatment
Inner wall material SUS304 stainless steel plate
Vacuum system Vacuum pump, air pumping regulating valve, inflation regulating valve
Contact us to buy altitude chamber.
There are many environmental chamber manufacturer, but we are one of the best choices for you.
