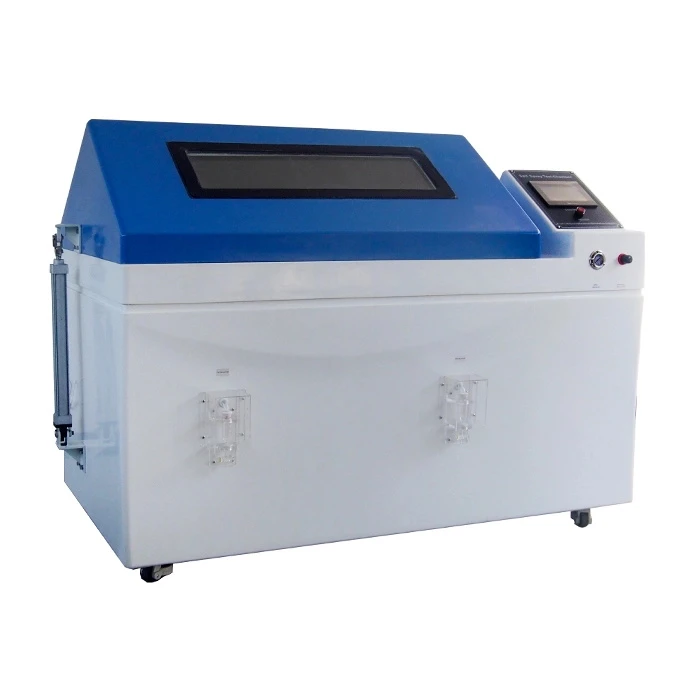

ASTM B117 Chamber

LIB ASTM B117 chamber is used to simulate marine climates or other harsh environments containing salt. The corrosion resistance of materials or products (such as metal coatings, electroplated parts, paint coatings, etc.) is evaluated by spraying a 5% concentration of salt solution on the surface of the material sample being tested.

According to ASTM B117 standard, the spray volume is controlled at 1-2ml /h/80cm², and the temperature parameter is required to be stable at 35℃±1.1℃.

Model: S-150,S-250, S-750, S-010, S-016, S-020

Standard: ASTM B117, ISO 9227, ASTM G85, D17 2028, SAE J2334, ISO4611, ISO7253, IEC 60068-2-11, ASTM G85-02e1 Annex A1, DIN 50021, ASTM B368

ASTM B117 Chamber Features and Benefits

1. Fully standardized closed environment, can accurately control the test salt spray concentration 5%±1%, temperature 35℃±1.1℃ and humidity and other parameters, to ensure the consistency of the test environment.

2. The spray system can atomize the salt solution into a fine mist, and evenly spray on the surface of the sample, so that all parts of the sample receive uniform salt spray corrosion.

3. By measuring the weight change and corrosion area of the sample before and after the test, the degree of corrosion can be quantitatively analyzed.

4. Suitable for corrosion resistance test of various metal materials, coatings, electroplating, etc., and is widely used in many industries such as automotive, aerospace, electronics, and construction.

Specifications of ASTM B117 Chamber

Model

S-150

S-250

S-750

S-010

Internal dimensions (mm)

590*470*400

1000*640*500

1100*750*500

1000*1300*600

Overall dimensions (mm)

1460*760*1140

1850*960*1350

1950*1030*1350

2000×1300×1600

Interior Volume (L)

110

320

410

780

Temperature Range

Ambient ～ +60 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Humidity Range

95% ~ 98% RH

Salt Fog Deposition

1～2ml / 80cm2 · h

Spray Type

Continuous / Periodic

Salt Fog Collected

Fog collector and fog measure cylinder

Air Preheating

Saturated air barrel

Spraying System

Atomizer tower and Spray nozzles

Controller

PID controller

Safety Device

Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection

Material

Glass fiber reinforced plastics

Standard Configuration

6 round bars and 5 V-shaped grooves
