Spiral Wound Gaskets: Reliable Sealing Solutions for Modern Industrial Applications

In today’s industrial landscape, spanning sectors such as petroleum, chemical processing, metallurgy, power generation, shipbuilding, and machinery manufacturing, effective sealing remains a critical engineering concern. Equipment including pipelines, valves, and pressure vessels relies on reliable sealing to ensure safe operation, prevent environmental contamination, and maintain production efficiency. Failures in sealing can lead to serious consequences, from equipment damage and production interruptions to safety hazards and environmental pollution. Among the many sealing solutions available, spiral wound gaskets have emerged as a leading choice due to their unique construction, superior performance, and adaptability to diverse industrial conditions.

Structure and Working Principle of Spiral Wound Gaskets

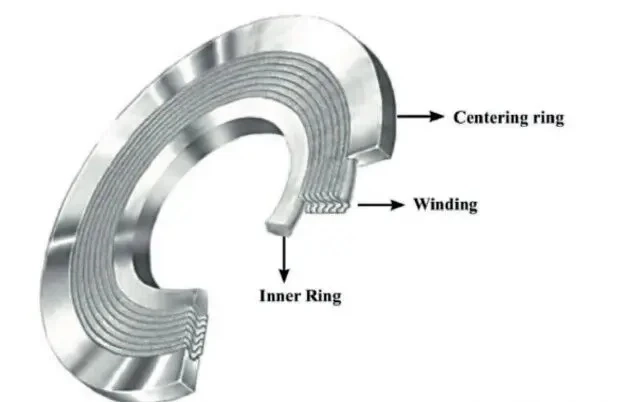

A spiral wound gasket is a semi-metallic gasket, constructed by alternately winding stainless steel strips and soft filler materials. Common stainless steels include SUS304 and SUS316, formed in a “V” or “W” cross-sectional shape to enhance elasticity and sealing reliability. Soft filler materials, layered between the metal strips, can include graphite, PTFE, or other non-asbestos alternatives.

Spot welding at the start and end of the winding ensures structural stability. The basic type of spiral wound gasket, without inner or outer rings, is suitable for medium- and low-pressure applications with tongue-and-groove, flat, or raised face flanges.

The sealing mechanism relies on elastic deformation of the metal strips and compressibility of the filler material. When the flange is tightened, the metal strips deform elastically while the filler fills microscopic gaps on the flange surfaces, creating a robust seal that adapts to minor flange imperfections. The V- or W-shaped strips provide multi-level reinforcement, offering mechanical strength and reliable sealing under diverse conditions.

Exceptional Sealing Performance

1. Excellent Compression and Recovery
Spiral wound gaskets compress evenly during flange assembly, filling small surface gaps. Upon pressure release, they partially recover, maintaining their shape and long-term sealing performance. This makes them tolerant of minor flange irregularities.

2. Multi-Layer Sealing and Self-Tightening
The alternating metal and filler layers form multiple sealing barriers, resisting process media pressure and preventing leakage. Additionally, spiral wound gaskets exhibit a self-tightening effect, compressing further under operational pressure. This feature is particularly valuable in fluctuating pressure systems, such as steam pipelines, chemical reactors, or high-pressure applications.

3. Adaptability to Harsh Conditions
Spiral wound gaskets withstand extreme conditions, including high and low temperatures, vacuum, vibration, and shock. The metal strips provide mechanical strength and dimensional stability, while the filler material offers flexibility and adaptability, accommodating thermal expansion, contraction, and vibration.

Applications range from high-temperature, high-pressure pipelines in the petroleum and chemical industries to high-vacuum, vibration-prone environments in shipbuilding and aerospace. Their durability and resilience make spiral wound gaskets suitable for a wide array of industrial challenges.

Industrial Applications

Spiral wound gaskets are widely used in:

• Petroleum and chemical industries: Sealing pipelines, valves, and pressure vessels, ensuring safe containment of hydrocarbons and corrosive chemicals.
• Metallurgy: Withstanding extreme heat in high-temperature equipment.
• Power generation, shipbuilding, aerospace, natural gas, nuclear energy, pharmaceuticals, and mechanical engineering: Sealing condensers, heat exchangers, towers, manholes, and handholes.

Across industries, spiral wound gaskets provide reliable sealing, protect equipment, and enhance operational safety.

Classification and Selection

Spiral wound gaskets are classified by the presence of inner and outer rings:

• Basic Type: Simple design, ideal for grooved flanges.
• Inner Ring Type: Reinforces sealing and prevents media erosion in embedded flanges.
• Outer Ring Type: Ensures correct positioning for flat flanges.
• Inner-Outer Ring Type: Provides maximum strength for high-pressure or complex conditions.

Material Selection:

• Metal Strip: SUS304 or SUS316L; specialty alloys like titanium or Inconel for high-performance applications.
• Filler Material: Graphite for steam/non-corrosive media; PTFE for acidic/alkaline media; inorganic fillers for cost-effective solutions.
• Reinforcement Rings: Carbon steel for general use, stainless steel for corrosive environments.

Selection depends on media type, temperature, pressure, and flange design to ensure optimal sealing.

Installation and Maintenance

Preparation: Clean and inspect flange surfaces; select the correct gasket size and type; check positioning rings.

Installation: Align the gasket accurately; tighten bolts symmetrically to achieve uniform compression; follow recommended torque specifications. Over-tightening or uneven tightening can compromise sealing.

Maintenance: Periodically inspect for leaks, replace gaskets according to schedules, and repair or replace damaged flange surfaces to maintain sealing integrity.

Spiral Wound Gaskets vs. Other Types

• Rubber gaskets: Prone to aging, deformation, and cracking under extreme conditions, whereas spiral wound gaskets maintain long-term performance.
• PTFE gaskets: Corrosion-resistant but can extrude under high pressure. Spiral wound gaskets, reinforced with metal strips, provide superior stability and reliability under high-pressure and high-temperature conditions.

Conclusion

Spiral wound gaskets are indispensable in modern industrial sealing, combining unique construction, exceptional performance, and broad applicability. Proper selection of gasket type and materials, combined with correct installation and maintenance, ensures safe and reliable operation. As industrial technology evolves, spiral wound gaskets will continue to provide robust, long-lasting protection, making them a cornerstone in industrial sealing solutions.China manufacturer offers high-quality industrial products with competitive pricing and advanced production capabilities.
