In the production process, it's a standard sheet metal. Stamping forms into metal with a Tube punching Equipment is simple. A hole is punched in the workpiece with an inserted mandrel during the punching process. A Tube punching Equipment are electromechanical machines that use computer programming inputs to move tools and generate patterns from a software file. These machines come with either a single tool rail and head or a multi-tool turret.

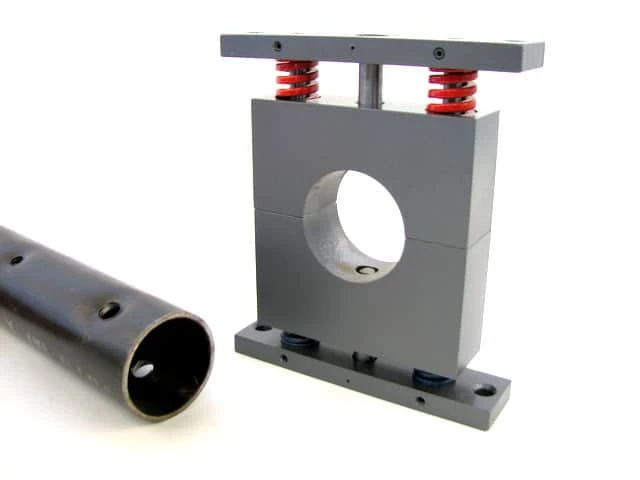

Tube punching with Mandrel
- Punching process where a hole is punched in the workpiece with an inserted mandrel. A mandrel is inserted and positioned beneath the punch, which is then forced against the workpiece with a pressing force applied.
- A slot die should be provided while punching the welded tubes so that it does not wedge against the slit. This also prevents the welding seam from breaking, which would impair the final product.
- Both the punched detail and the bore have the typical cut surface seen in punching operations, namely a smooth surface where the material has slipped and a rougher surface where the failure occurs. When the tools are intended to do compression forming, the sheet is deformed via plastic deformation.
What Are the Advantages of Tube Punching Equipment?
Productivity Improvements
Once a design has been chosen and developed, it can be reused multiple times, increasing productivity by eliminating technical and time-consuming manual processes.
Accuracy and Quickness
Because of the automation and reproducibility, this procedure is also quick; regardless of how complex the design is, the production time is reduced. CNC machines are typically employed for the most difficult and accurate components of machining, ensuring precision.
Efficiency
CNC punching machines are quick and precise, and they produce less waste. When a machine's internal quality detector identifies a flaw, the machine will stop punching to prevent further waste.
Safe and Cost-Effective
In the long run, money is saved because no raw materials are wasted away because waste is limited to a bare minimum. Furthermore, the operator is kept safe while working in a risk-free environment because the entire process is automated.
How Tube punching Equipment works?
- A slitting method in which a sheet is severed in one stroke is known as punching. The portion is shaped with round holes, and the external outlines are carved with single strokes.
- A punching machine functions similarly to a paper hole punch. The punch forces the paper against the hole punch's support, eventually forming a circular aperture. The hole punch container gathers the scrap from the punching.
- The sheet is positioned between the punch and the die in the same way it is in punching. The punch descends and makes contact with the die. The punch and die edges go past each other in a parallel motion, cutting the sheet.
Conclusion
Operating and configuring these electrically driven presses with the expertise of a tube punching equipment will help you get the most out of these machines. Using a Tube punching Equipment, you can accomplish more project goals faster and more efficiently.
