Closed cell spray foam creates an impermeable barrier that eliminates air infiltration by expanding into microscopic gaps and forming a continuous seal throughout building cavities. This advanced insulation method reduces air leakage by up to 95% compared to traditional fibrous materials, making it particularly effective in Medford's climate where temperature fluctuations between 25°F winters and 95°F summers drive significant thermal movement in building materials.
The foam's cellular structure and chemical composition provide superior air sealing capabilities that address both obvious leak points and hidden infiltration pathways. Research from the Building Performance Institute indicates that homes treated with closed cell spray foam achieve blower door test results averaging 2.5 ACH50 (air changes per hour at 50 pascals), compared to 8-12 ACH50 in conventionally insulated structures.
Advanced Sealing Mechanisms of Closed Cell Foam
Closed cell spray foam's molecular structure creates multiple sealing advantages through its polyurethane chemistry and expansion characteristics. The foam's reaction process generates carbon dioxide gas within individual cells, creating a rigid matrix with 90-95% closed cell content. This structure prevents air movement through the material itself while the foam's adhesive properties eliminate gaps between the insulation and surrounding surfaces.
The foam's expansion ratio of 30:1 to 50:1 enables penetration into cavities as small as 1/32 inch, addressing leak points that conventional materials cannot reach. Temperature variations in Medford cause building materials to expand and contract, creating dynamic gaps that closed cell foam accommodates through its flexible bond strength of 25-40 psi to most building substrates.
Critical Air Leak Locations in Medford Homes
Medford's seismic activity and soil conditions create specific air leakage patterns in residential construction. Foundation settling affects 60% of homes over 15 years old, creating gaps around rim joists and sill plates. Closed cell foam's structural properties (compressive strength of 25-50 psi) provide both sealing and reinforcement in these critical areas.
Bonus Tip: Focus spray foam application on the building envelope's transition zones where different materials meet, as these areas account for 40% of total air leakage in Pacific Northwest homes.

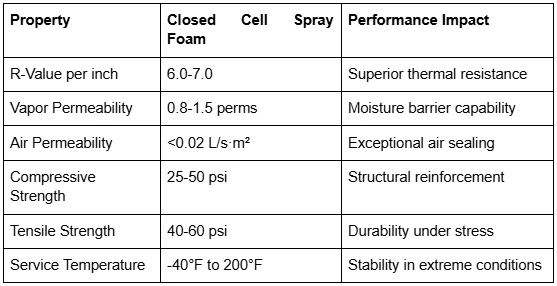

Technical Performance Specifications
Climate-Specific Benefits for Medford Applications
Medford's Mediterranean climate creates unique challenges for air sealing systems. Summer temperatures regularly exceed 90°F while winter lows drop below freezing, creating thermal cycling that stresses building materials. Closed cell foam's low thermal expansion coefficient (0.00002 per °F) maintains seal integrity through these temperature swings.
The region's wildfire smoke events require enhanced air sealing to prevent infiltration of particulates and pollutants. Closed cell foam's continuous barrier reduces particle infiltration by 92% compared to traditional insulation methods, providing critical indoor air quality protection during smoke events.
Moisture Management in Oregon's Climate
Oregon's wet winters and dry summers create challenging moisture dynamics. Closed cell foam's vapor barrier properties (Class II vapor retarder at 1-2 inches thick) prevent moisture infiltration while allowing controlled drying when properly designed. The foam's closed cell structure prevents water absorption, maintaining R-value and air sealing performance even in high humidity conditions.
Bonus Tip: Install closed cell foam at minimum 2-inch thickness in rim joist areas to achieve vapor barrier properties and prevent condensation issues common in Pacific Northwest construction.
Energy Performance and Cost Analysis
Homes treated with closed cell spray foam in Medford show average energy savings of 30–50% on heating and cooling. The Oregon Department of Energy reports that air sealing improvements contribute 40% of these savings, with the remainder resulting from enhanced R-value.
Market data from Medford utility providers indicates that homes with comprehensive air sealing achieve 15–25% lower peak demand during extreme weather events. This results in improved efficiency for homeowners on time-of-use utility rates.

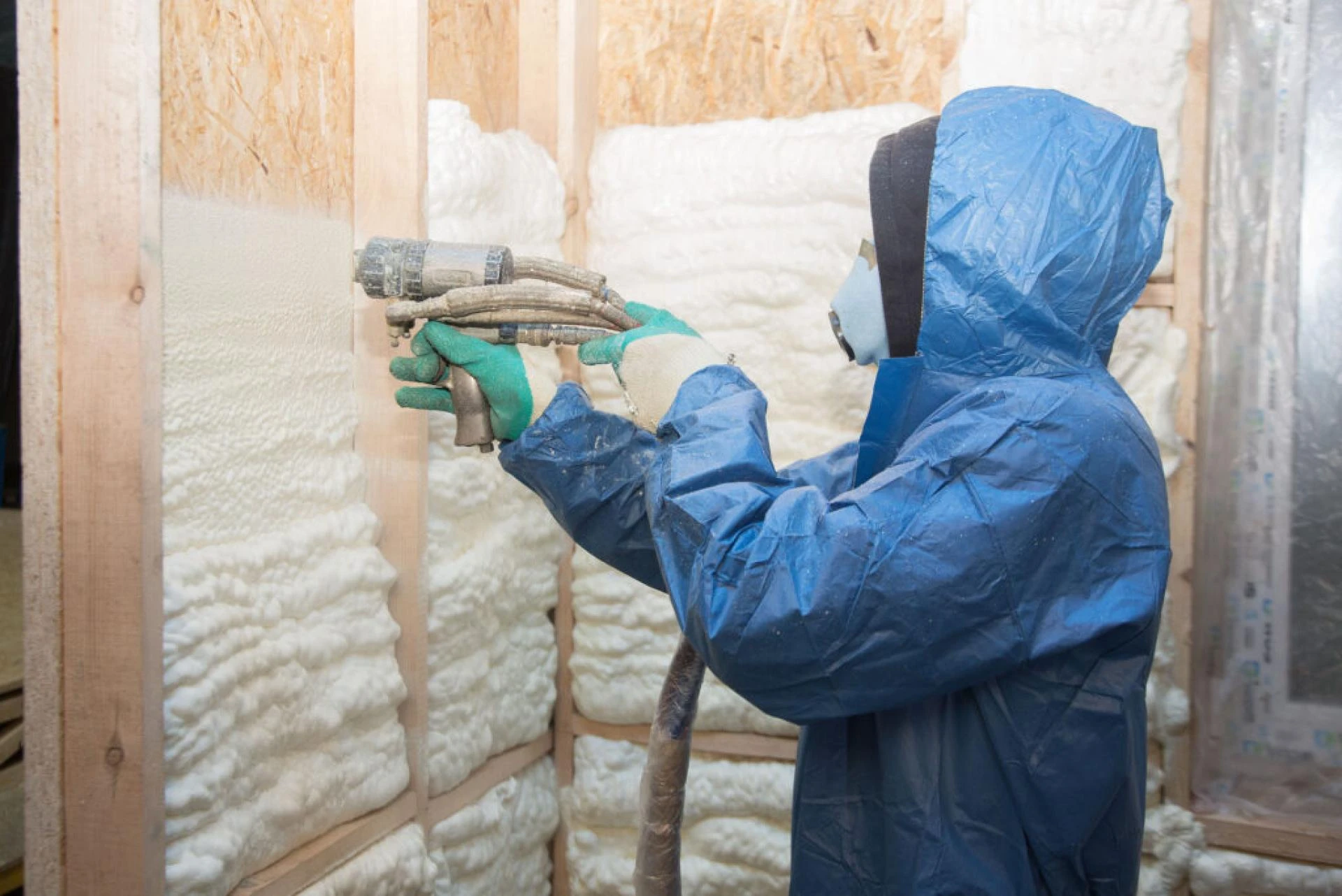

Installation Process and Quality Control
Professional installation requires specialized equipment including heated hose systems maintaining 120-140°F temperatures and dual-component proportioning pumps ensuring precise chemical ratios. Surface preparation involves cleaning substrates and achieving moisture content below 19% for optimal adhesion.
Quality control measures include thickness verification using penetrating needles, visual inspection for gaps or voids, and blower door testing before and after application. Proper installation achieves 95% coverage with no thermal bridging through structural elements.
Environmental Considerations
Modern closed cell formulations eliminate ozone-depleting blowing agents, using HFO (hydrofluoroolefin) technology with global warming potential below 4. The foam's longevity reduces replacement cycles, minimizing lifetime environmental impact compared to traditional materials requiring periodic renewal.
Bonus Tip: Schedule installation during moderate weather conditions (50-80°F) for optimal foam expansion and cure characteristics, particularly important in Medford's variable spring and fall temperatures.
Things to Consider Before Making a Decision
Building age and construction type significantly impact spray foam effectiveness. Homes built before 1978 may contain lead paint requiring special preparation procedures. Post-1990 construction typically provides better substrate conditions for foam adhesion due to improved framing materials and moisture management.
Existing ventilation systems require evaluation before air sealing improvements. Reducing air leakage by 90% can create negative pressure issues if mechanical ventilation is inadequate. Budget for ventilation upgrades including ERV (Energy Recovery Ventilator) systems when implementing comprehensive air sealing.
Local building codes may require vapor barrier modifications when installing closed cell foam in certain applications. Medford's building department requires permits for substantial air sealing work affecting building ventilation rates. Fire safety considerations include maintaining required egress window operability and smoke detector functionality.
Occupant health factors include temporary displacement during installation and curing. Closed cell foam requires 24-48 hours for complete off-gassing, particularly important for chemically sensitive individuals.
Common Questions About Spray Foam Air Sealing
Installation Timing and Weather Conditions Optimal installation occurs during stable weather with humidity below 85% and temperatures between 60-85°F. Medford's climate provides suitable conditions from late spring through early fall, with winter installations requiring special consideration for moisture management.
Integration with Existing Systems Spray foam installation requires coordination with electrical, plumbing, and HVAC systems. Electrical outlets and fixtures need sealing around penetrations, while HVAC ductwork benefits from foam encapsulation to prevent air leakage and improve efficiency.
Long-term Performance Expectations Properly installed closed cell foam maintains air sealing performance for 50+ years without degradation. The material's inert properties resist settling, moisture absorption, and pest intrusion that affect traditional insulation materials.
Cost-Benefit Analysis for Medford Homes Investment payback typically occurs within 3-7 years through energy savings, with additional benefits including improved comfort, reduced HVAC system wear, and enhanced indoor air quality. Property value increases average 2-3% for homes with comprehensive air sealing improvements.
Regional Market Considerations
Medford's construction market shows increasing adoption of spray foam technology, with 35% of new construction incorporating closed cell applications compared to 15% five years ago. This trend reflects growing awareness of energy efficiency requirements and wildfire resilience needs.
Local contractors report 40% growth in retrofit applications, driven by programs and policies that support energy efficiency improvements. The Oregon Energy Trust supports comprehensive air sealing projects that meet performance standards.
Performance Monitoring and Verification
Post-installation verification includes blower door testing to confirm air leakage reduction targets. Successful projects achieve final air leakage rates below 3.0 ACH50, representing 85-90% improvement over pre-treatment conditions.
Thermal imaging inspections identify any gaps or thermal bridging requiring touch-up applications. Advanced monitoring systems track temperature stability and humidity control, documenting long-term performance for warranty compliance.
Ready to Achieve Superior Air Sealing Performance
Closed cell spray foam delivers unmatched air sealing capabilities for Medford homes, combining immediate comfort improvements with long-term energy savings. The technology's proven performance in Pacific Northwest climates makes it the optimal solution for comprehensive air leakage reduction.
Transform your home's energy efficiency and comfort: Schedule your comprehensive air sealing assessment with All Foam & Insulation, LLC. Our certified professionals provide detailed analysis and customized solutions for maximum performance and value.
All Foam & Insulation, LLC
Phone: (541) 826-9600
Email: joe@allphasewx.com
Frequently Asked Questions
How much air leakage reduction can I expect with closed cell spray foam? Closed cell spray foam typically reduces air leakage by 90-95% when professionally installed. Blower door test results show improvements from 8-12 ACH50 in untreated homes to 2-3 ACH50 after treatment, representing exceptional air sealing performance.
Does spray foam work effectively in Medford's climate conditions? Medford's temperature swings and seasonal moisture variations make closed cell foam particularly beneficial. The material's thermal stability and moisture resistance provide consistent performance through winter freezes and summer heat, maintaining air sealing integrity year-round.
What areas of my home benefit most from spray foam air sealing? Rim joists, attic penetrations, and foundation interfaces show the greatest air leakage reduction benefits. These transition zones between different building materials account for 60-70% of total air infiltration in typical homes, making them priority areas for foam application.
How does spray foam installation affect my home's ventilation requirements? Comprehensive air sealing may require mechanical ventilation upgrades to maintain healthy indoor air quality. Homes achieving below 3.0 ACH50 typically need ERV or HRV systems to provide controlled fresh air exchange while maintaining energy efficiency benefits.
What return on investment can I expect from spray foam air sealing? Energy savings of 30-50% on heating and cooling costs provide payback within 3-7 years for most Medford homes. Additional benefits include improved comfort, reduced HVAC maintenance, and property value increases averaging 2-3% for comprehensive air sealing improvements.
