The Heart of the Hull: A Human Guide to Ship Engine Components

If you’ve ever stood on the deck of a massive cargo ship, you’ve felt it—that deep, rhythmic thrum vibrating through the steel soles of your boots. That’s the "heart" of the ship.

For many, basic marine engineering knowledge can feel like trying to learn a secret language. But whether you’re a student diving into a basic marine engineering knowledge PDF for an exam, or a gamer looking for step-by-step instructions on how to make a working ship in Space Engineers, the fundamentals are actually quite intuitive once you strip away the jargon.

Let’s take a look inside the world’s most powerful machines.

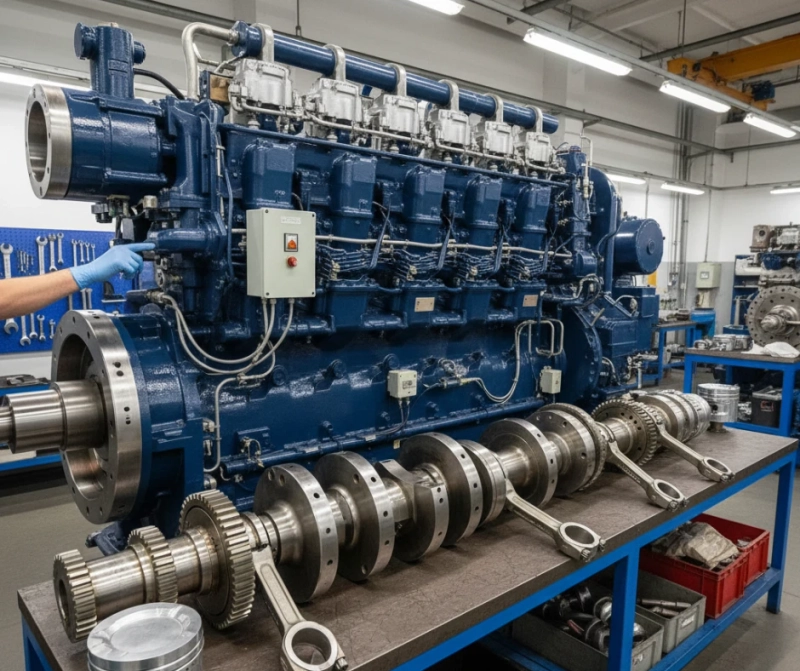

Marine Diesel Engine Components

To understand an engine, think of it like a human body. Every part has a special job.

• The Bedplate (The Feet): This is the foundation. It is a huge, heavy frame bolted to the bottom of the ship. It holds the weight of the whole engine and stops it from shaking.
• The A-Frame (The Ribs): These sit on the bedplate. They are strong metal supports that hold the top parts of the engine in place.
• The Cylinder Liner (The Sleeve): This is a smooth tube where the fire and power happen. Inside this tube, the piston moves up and down.

Main Components of Dry Sump Marine Diesel Engines

In a normal car, oil sits in a pan at the bottom. But on a ship, the waves make the oil splash around. This is why we use a Dry Sump system.

• The Oil Tank: Instead of keeping oil at the bottom of the engine, we pump it out into a separate tank. This keeps the oil safe and steady even when the ship is leaning in a storm.
• Scavenge Pump: This pump "cleans" out the oil from the bottom of the engine and sends it to the tank. This is one of the most important main components of dry sump marine diesel engines because it ensures the engine never runs out of oil during big waves.

Basic Marine Engineering Knowledge: How it Moves

How does a straight push turn into a circle to spin the propeller? It happens in three steps:

1. The Piston: Fuel explodes and pushes the piston down.
2. The Crosshead: This is a joint that keeps the metal rod moving perfectly straight up and down so it doesn't break.
3. The Crankshaft: This is a long, heavy rod that turns the "up and down" movement into a "spinning" movement.

Step-by-Step Instructions on How to Make a Working Ship in Space Engineers

If you play Space Engineers, you can use these real-life engine rules to make your ship better. Follow these steps:

• Step 1: Build a Strong Base. Use heavy armor blocks for your "bedplate" area. This protects your engines from breaking.
• Step 2: Connect the Pipes. In the game, use Conveyors to connect your fuel tanks to your engines. This is just like the fuel lines on a real ship.
• Step 3: Add the Lungs. Use an Oxygen Generator. Just like a real engine needs a Turbocharger to breathe air, your game ship needs gas to keep the engines running.
• Step 4: Cooling. Leave space around your reactors. Real ships use water to cool engines; in the game, you need space so things don't overheat.

Summary for Beginners

If you are searching for a basic marine engineering knowledge PDF, you will see many complex drawings. But just remember these four simple things:

• Bedplate = The strong floor.
• Piston = The part that gets pushed.
• Crankshaft = The part that spins.
• Dry Sump = The safe way to store oil.

Understanding the heart of a ship doesn’t have to be complicated. From the sturdy bedplate to the moving piston and the spinning crankshaft, every component has a purpose, and systems like the dry sump ensure the engine stays safe and reliable. Whether you’re learning marine engineering basics for studies, or applying real-world principles to build a ship in Space Engineers, these fundamentals form the backbone of all marine machinery. For anyone seeking trusted guidance, high-quality spare parts, and expert support in marine engines, Labdhi Marine provides a reliable source of equipment and knowledge. With years of experience serving ship owners and operators worldwide, they ensure that your engines run smoothly and efficiently, keeping your vessels ready for the seas. From new, reconditioned, or used components, Labdhi Marine is committed to delivering both quality and expertise, helping beginners and professionals navigate the complex world of marine engineering with confidence
